Diffused Batten ZBB22

Diffused Batten ZBB22

14W Surface Mounted Diffused Batten

  • Surface mounted diffused LED batten with powder coated body and acrylic prismatic diffuser for smooth uniform light distribution
  • Optional battery backup kit available in maintained or non-maintained variants, meeting AS/NZS 2293 compliance
  • CRI 90+ available in 2700K, 3000K, 4000K and 5000K CCT options
  • Supplied with an integral driver and internally mounted 4mm2 terminal block for easy installation
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI90
Icon type Beam Angle var VW
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions595 (L) X 95 (W) X 83 (H) mm
Weight2000 g

General Characteristics

Diffused Batten
Surface Mounted
Ingress ProtectionIP20

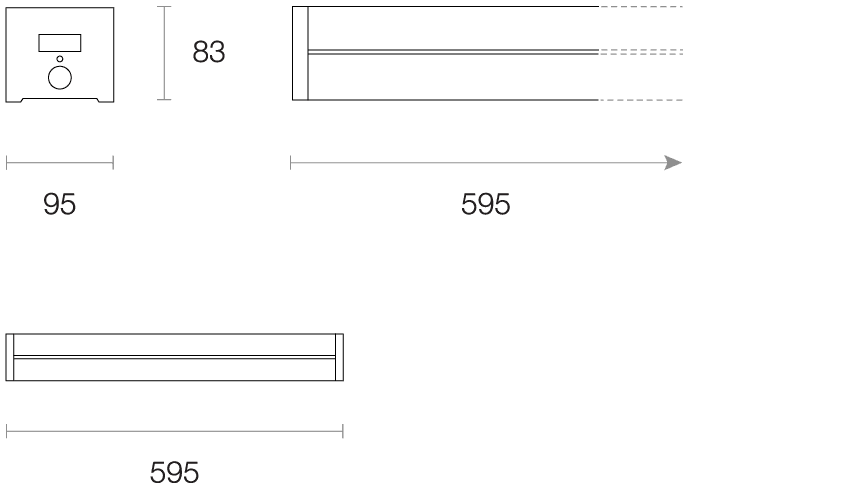

Dimensions (mm)

ZBB22 2x

Technical Characteristics*

LED Power14W
LED Lumen Output*2232 lm
Luminous Flux*1560 lm
Efficacy*97.50 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80 B10)
System Power16W Typical
Driver ModelTrend 150232 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
