Diffused Batten ZBB44

Diffused Batten ZBB44

30W Surface Mounted Diffused Batten
Options

  • Surface mounted diffused LED batten with powder coated body and acrylic prismatic diffuser for smooth uniform light distribution
  • Optional battery backup kit available in maintained or non-maintained variants, meeting AS/NZS 2293 compliance
  • CRI 90+ available in 2700K, 3000K, 4000K and 5000K CCT options
  • Supplied with an integral driver and internally mounted 4mm2 terminal block for easy installation
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI90
Icon type Beam Angle var VW
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions1195 (L) X 95 (W) X 83 (H) mm
Weight3200 g

General Characteristics

Family
Diffused Batten
Surface
Ceiling
Mounting
Surface Mounted
Ingress ProtectionIP20

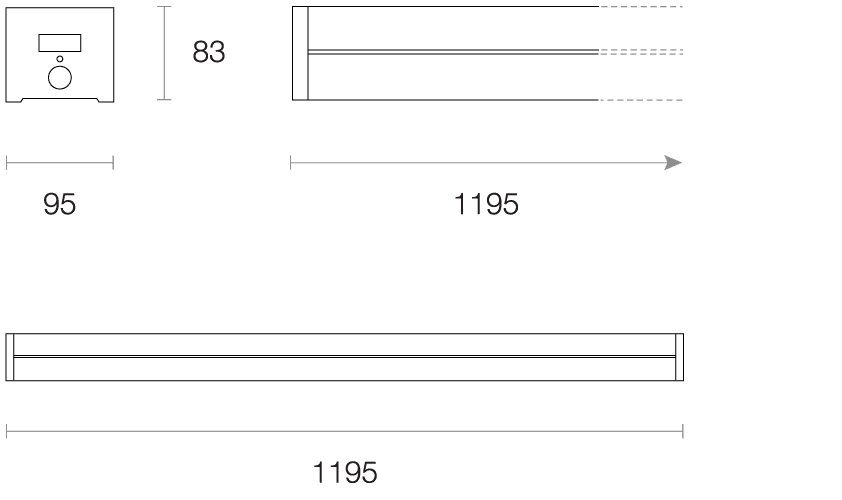

Dimensions (mm)

ZBB44 2x

Technical Characteristics*

LED Power30W
LED TypeSMD
LED Lumen Output*4464 lm
Luminous Flux*3120 lm
Efficacy*97.50 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80 B10)
System Power32W Typical
Driver ModelTrend 150232 (Non-dim)
* Based on: 4000K, CRI 90+ Standard

Diffused Batten Series

Continue your search and explore the series range.

View Diffused Batten seriesArrow Right

Get in touch

Contact usArrow Right

Trend Lighting are a valued supplier of Sheridan, consistently delivering a premium full-service experience from concept design to installation with products of the highest quality. What we appreciate most about working with their team is that nothing is ever too much trouble. They continually go above and beyond to provide the best lighting solutions for our stores.

Joel Newham - Head of VM and Store Development Hanes Australasia - Sheridan Group

From the service, products, and reliability we have been nothing but happy since using Trend. The team have consistently gone above and beyond ensuring we turn around orders in tight deadlines, always making it happen.

Alexandra Klapos - Retail Project Coordinator - Billini

We are extremely happy with the work done by Trend Lighting. The lights chosen are stylish and blend well with our office whilst providing an excellent environment for our team to view fabrics and sample products.

Institchu

The lighting design provided by Trend completely transformed the space and was continuously complimented by our clients from the first day we had them up. We look forward to working with Trend for our future projects.

Ben Bottalico - Blue Group Projects

Trend Lighting collaborates with designers, architects and engineers.

We create breakthrough solutions that help reduce your costs and your carbon footprint.

OptionsConfiguration Options
Downloads

Download these files for Diffused Batten ZBB44

Product Standard DatasheetDownload
