Flexiled XF24480

Flexiled XF24480

9W/m 24V DC Flexible COB Strip

  • Flexible LED strip with a close pitch of 480 LEDs per metre and shared linear phosphor for a continuous and even light emission
  • Available in reels up to 5 metres with a cutting interval of 50 mm
  • Supplied with adhesive backing for quick and easy installation
  • CRI 90+ available in 3000K and 4000K CCT options
  • Can be paired with a variety of extrusion profiles to suit any interior scheme
Product Standards
Icons Technical RGB Voltage24 V Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics LED Strip

Dimensions1000 (L) X 8 (W) X 2 (H) mm
Max Reel Length5000 mm*
* Custom Lengths Available

General Characteristics

Surface Mounted
Ingress ProtectionIP20

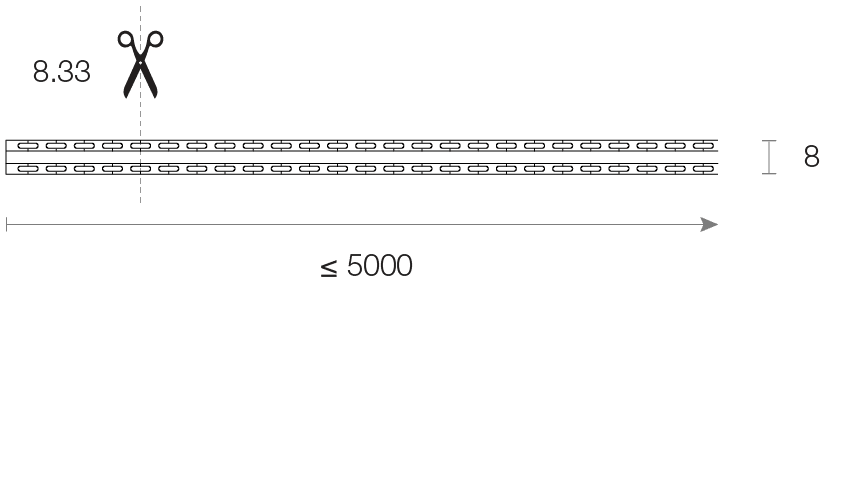

Dimensions (mm)

XF24480 2x

Technical Characteristics*

Input Voltage24V DC
LED Power9W per metre
LED Lumen Output*1000 lm
Colour DeviationSDCM ≤ 3
Lifetime50,000 hrs
LED Pitch480 LEDs per metre
LED Cutting Increment50 mm
BackingAdhesive Backing 3M 300LSE
Cooper Content2oz PCB
Driver ModelTrend 150310 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
