Multiled DTL18

Multiled DTL18

18W Recessed Tricolour Downlight

  • Large recessed SMD LED fixed downlight with a slim design and opal polycarbonate diffuser for uniform lighting distribution
  • Aluminium profile provides excellent thermal management for exceptional heat dissipation
  • An ideal lighting solution for residential and commercial applications
  • Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
  • Supplied with remote flicker free Leading & Trailing Edge dimmable driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icons Technical RGB CCT Tech TRI Colour
Icon type CRI var CRI85
Icon type Beam Angle var WB
Icon IP54
Icons Technical RGB IC4 Grey
Icons Technical RGB Warranty3 YR Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀190 X 53 (H) mm
Weight580 g
CutoutCircle - 160 - 170 mm
Spring Height35 mm

General Characteristics

Trend For Trade,
Insulation ContactIC-4
Ingress ProtectionIP54
Warranty3 Years

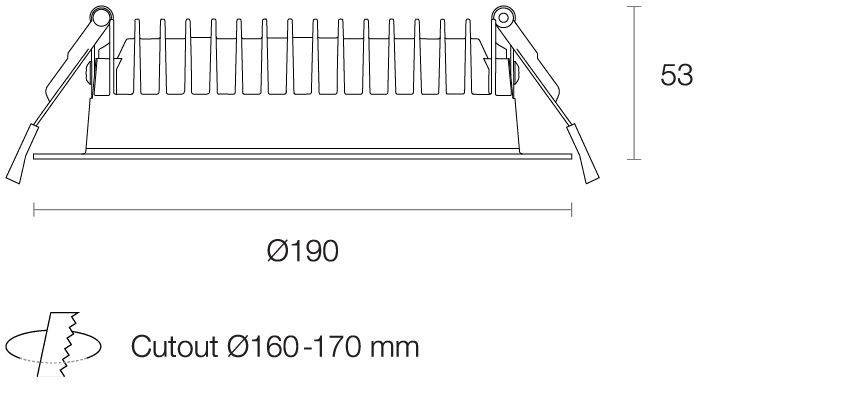

Dimensions (mm)

DTL18 2x

Technical Characteristics

LED Power18W
LED Lumen Output*2145 lm
Efficacy*Up to 121 lm/W
CCT TechnologySwitchable
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power17.6W Typical
Driver ModelTrend DR-DTL18 (L&T)

Trend For Trade Series
