Nero WP0601

Nero WP0601

20W IP65 & IK08 Rated Tricolour 600mm Weatherproof Batten

  • Surface mounted SMD LED weatherproof batten with waterproof protection
  • Manufactured from ABS plastic with an impact resistant polycarbonate diffuser for soft uniform light distribution
  • Smart latch design allowing access to the conveniently mounted terminal block for easy installation
  • Colour temperature can be selected via a switch on the LED tray, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
  • Supplied with an integral non-dimmable driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icons Technical RGB CCT Tech TRI Colour
Icon type CRI var CRI85
Icon type Beam Angle var VW
Icon IP65
Icons Technical RGB IK08 Bang Black
Icons Technical RGB Warranty3 YR Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions618 (L) X 116 (W) X 74 (H) mm
Weight1150 g

General Characteristics

Trend For Trade,
Surface Mounted
Ingress ProtectionIP65
Impact ResistanceIK08
Warranty3 Years

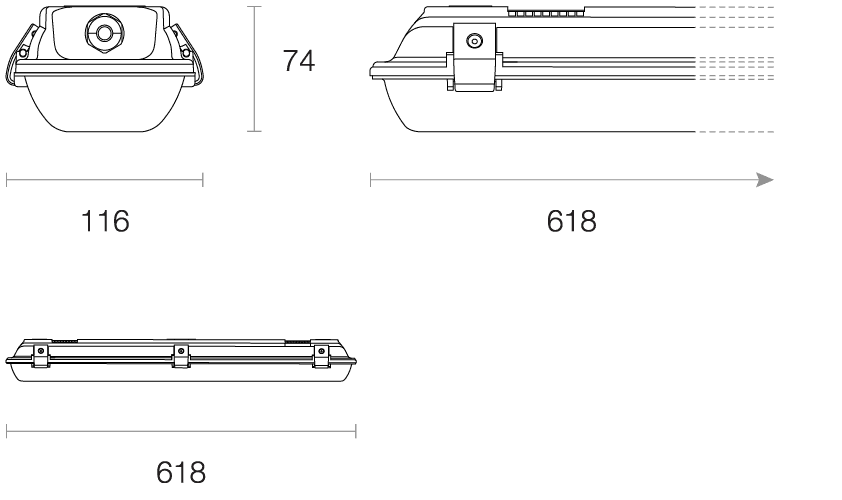

Dimensions (mm)

WP0601 2x

Technical Characteristics

LED Power18W
LED Lumen Output*2100 lm
Efficacy*Up to 105 lm/W
CCT TechnologySwitchable
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours
System Power20W Typical
Driver ModelTrend DR-WP0601 (Non-dim)
