Nero WP1201

Nero WP1201

40W IP65 & IK08 Rated Tricolour 1200mm Weatherproof Batten
Options

  • Surface mounted SMD LED weatherproof batten with waterproof protection
  • Manufactured from ABS plastic with an impact resistant polycarbonate diffuser for soft uniform light distribution
  • Smart latch design allowing access to the conveniently mounted terminal block for easy installation
  • Colour temperature can be selected via a switch on the LED tray, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
  • Supplied with an integral non-dimmable driver
  • Optional motion sensor available
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icons Technical RGB CCT Tech TRI Colour
Icon type CRI var CRI85
Icon type Beam Angle var VW
Icon IP65
Icons Technical RGB IK08 Bang Black
Icons Technical RGB Warranty3 YR Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions1215 (L) X 116 (W) X 74 (H) mm
Weight1950 g

General Characteristics

Family
Trend For Trade,
Nero
Surface
Ceiling
Mounting
Surface Mounted
Ingress ProtectionIP65
Impact ResistanceIK08
Warranty3 Years

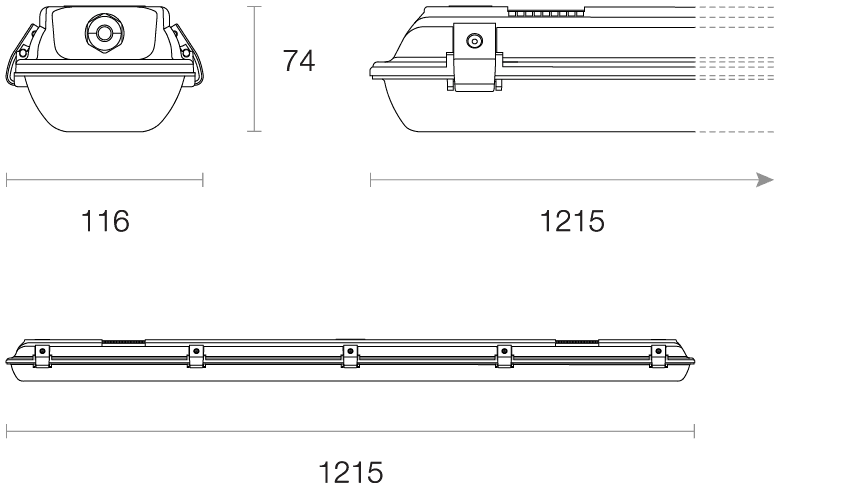

Dimensions (mm)

WP1201 2x

Technical Characteristics

LED Power38W
LED TypeSMD
LED Lumen Output*4200 lm
Efficacy*Up to 105 lm/W
CCT TechnologySwitchable
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours
System Power40W Typical
Driver ModelTrend DR-WP1201 (Non-dim)
Sensor
Microwave Motion Sensor
