Slot LSM5

Slot LSM5

10W Surface Mounted Miniature Linear Downlight
Options

  • Surface mounted miniature LED linear downlight crafted with aesthetics and visual comfort in mind
  • Equipped with 5 deep set light optics specifically designed for glare control, minimising the presence of the luminaire within the field of vision
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver and 240V flex and plug
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions140 (L) X 47 (W) X 52 (H) mm
Weight220 g

General Characteristics

Family
Slot
Surface
Ceiling
Mounting
Surface Mounted
Ingress ProtectionIP20

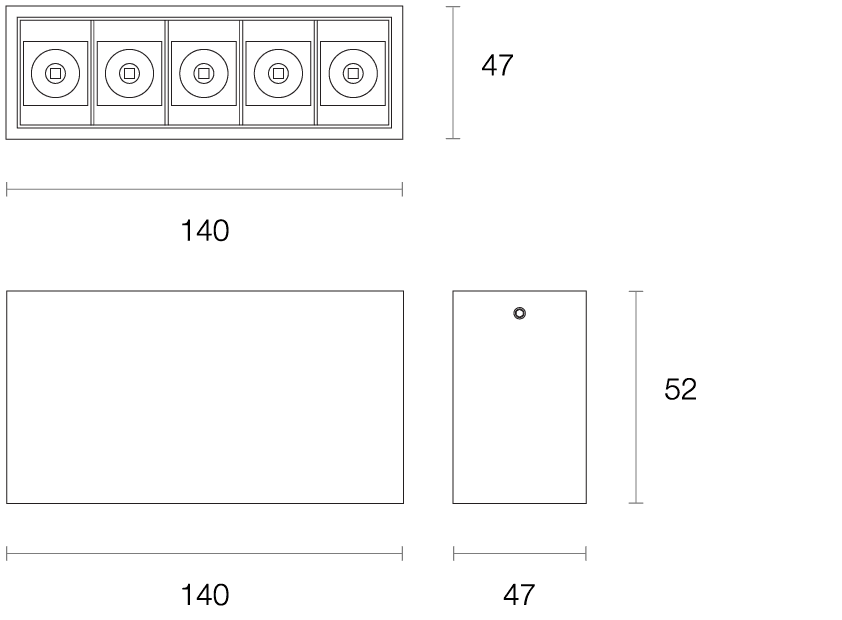

Dimensions (mm)

LSM5 2x

Technical Characteristics*

LED Power10W
LED TypeCOB
LED Lumen Output*1223 lm
Luminous Flux*1002 lm
Efficacy*80.81 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power12.4W Typical
Driver ModelTrend 150013-700 (Non-dim)
* Based on: 4000K, CRI 90+ Standard

Slot Series

Continue your search and explore the series range.

View Slot seriesArrow Right
