Slot LST10

Slot LST10

20W Recessed Linear Downlight
Options

  • Recessed miniature LED linear downlight crafted with aesthetics and visual comfort in mind
  • Equipped with 10 deep set light optics specifically designed for glare control, minimising the presence of the luminaire within the field of vision
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver and 240V flex and plug
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions257 (L) X 44 (W) X 52 (H) mm
Weight290 g
CutoutRectangle - 250 x 36 mm

General Characteristics

Family
Slot
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

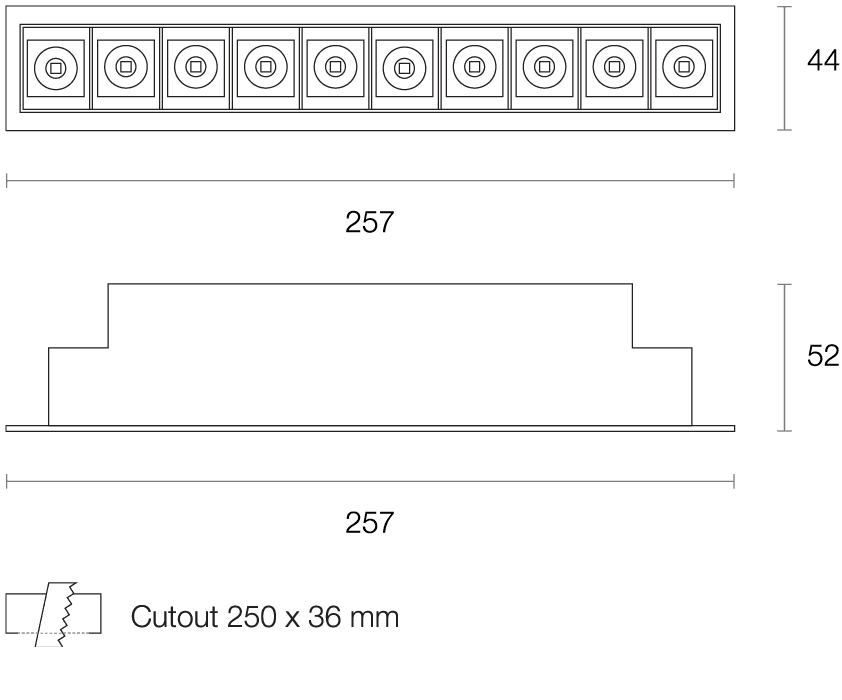

Dimensions (mm)

LST10 2x

Technical Characteristics*

LED Power20W
LED TypeCOB
LED Lumen Output*2467 lm
Luminous Flux*1912 lm
Efficacy*78.36 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power24.4W Typical
Driver ModelTrend 150020-700 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
