Slot LST5

Slot LST5

10W Recessed Miniature Linear Downlight

  • Recessed miniature LED linear downlight crafted with aesthetics and visual comfort in mind
  • Equipped with 5 deep set light optics specifically designed for glare control, minimising the presence of the luminaire within the field of vision
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver and 240V flex and plug
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions137 (L) X 44 (W) X 52 (H) mm
Weight270 g
CutoutRectangle - 130 x 36 mm

General Characteristics

Insulation ContactNon-IC
Ingress ProtectionIP20

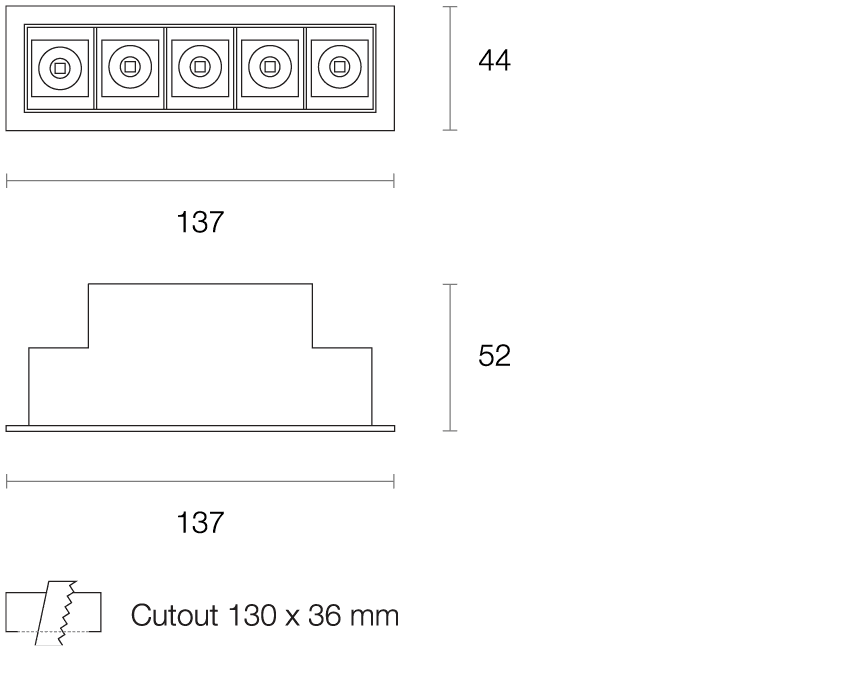

Dimensions (mm)

LST5 2x

Technical Characteristics*

LED Power10W
LED Lumen Output*1233 lm
Luminous Flux*1002 lm
Efficacy*77.08 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power13W Typical
Driver ModelTrend 150013-700 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
