Slot ZDA90-D

Slot ZDA90-D

28W Suspended Uni-directional Streamline Linear

  • Suspended uni-directional streamline LED linear known for its sleek profile
  • Manufactured from extruded aluminium with optional powdercoat finish and opaque acrylic diffuser for smooth beam distribution
  • Alternate configurations available (ZDA90 and ZDA90-DI)
  • Also available in 1800mm, 2400mm, 3000mm and 3600mm lengths. Customisable lengths are available upon request
  • CRI 90+ available in 2700K, 3000K, 3500K, 4000K and 5000K CCT options
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI90
Icon type Beam Angle var VW
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions1200 (L) X 50 (W) X 90 (H) mm
Weight3400 g

General Characteristics

Ingress ProtectionIP20

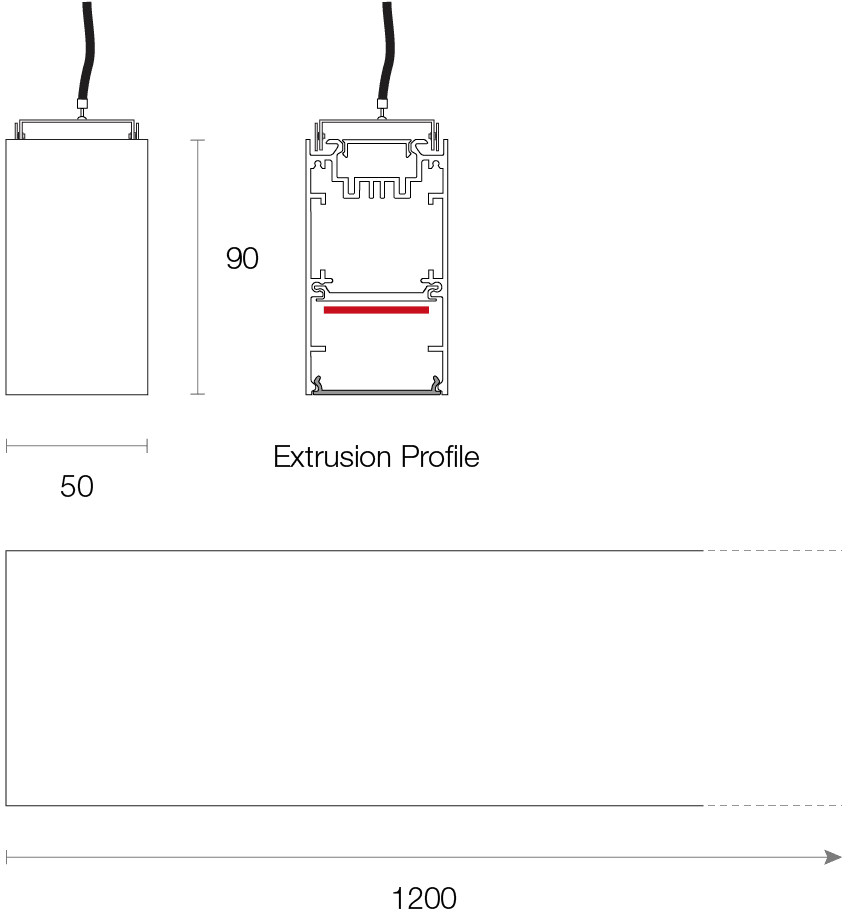

Dimensions (mm)

ZDA90 D 2x

Technical Characteristics*

LED Power28W
LED Lumen Output*4464 lm
Luminous Flux*2113 lm
Efficacy*70.43 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power30W Typical
Driver ModelTrend 150232 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
