Track Spot XTB10

Track Spot XTB10

10W Architectural Premium Track Spot

  • Track mounted premium LED spotlight designed to make an architectural statement and a practical solution for track installations
  • Built from an aluminium powder coated body, featuring a high efficiency collimating lens for smooth and even light distribution
  • Also available in other variations (XTB25 and XTB35)
  • CRI 90+ in 2700K, 3000K, 3500K and 4000K and 5000K CCT options; CRI 97+ and CRI 93+ VIVID available in 2700K, 3000K, and 4000K CCT options
  • Supplied with a 3-circuit track adapter and an integral driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀80 X 157 (H) mm
Weight788 g
Tilt Angle90°

General Characteristics

Track Spot
Track Mounted
Ingress ProtectionIP20

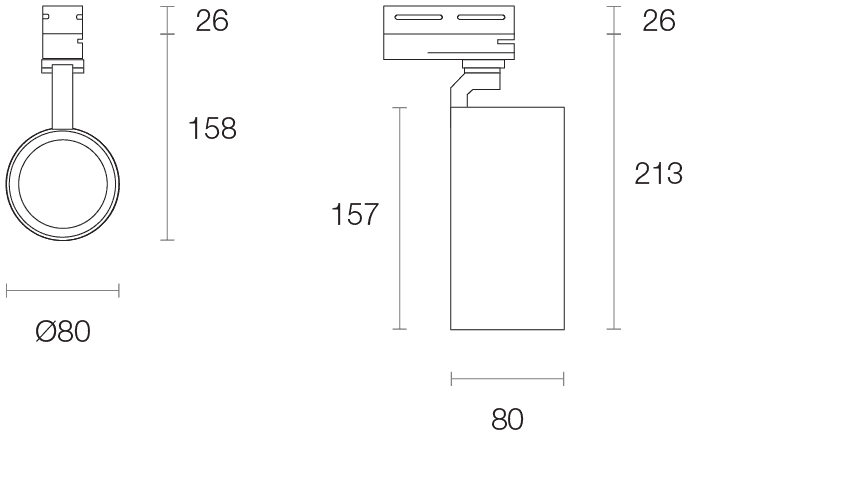

Dimensions (mm)

XTB10 2x

Technical Characteristics*

LED Power10W
LED Lumen Output*1450 lm
Luminous Flux*1008 lm
Efficacy*85.42 lm/W
Colour DeviationSDCM ≤2
Lifetime50,000 hours (L80)
System Power11.8W Typical
Driver ModelTrend 150071-250 (T/E)
* Based on: 4000K, CRI 90+ Standard
