Unoled TL10

Unoled TL10

10W Recessed Compact Tricolour Downlight
Options

  • Recessed SMD LED downlight manufactured with an aluminium body and finished with corrosion resistant powder coating
  • Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
  • Supplied with remote flicker free Trailing Edge driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icons Technical RGB CCT Tech TRI Colour
Icon type CRI var CRI80
Icon type Beam Angle var WB
Icon IP44
Icons Technical RGB IC4 Grey
Icons Technical RGB Warranty3 YR Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀104 X 45 (H) mm
Weight170 g
CutoutCircle - 85 - 95 mm
Spring Height30 mm

General Characteristics

Family
Trend For Trade,
Unoled
Surface
Ceiling
Mounting
Recessed
Insulation ContactIC-4
Ingress ProtectionIP44
Warranty3 Years

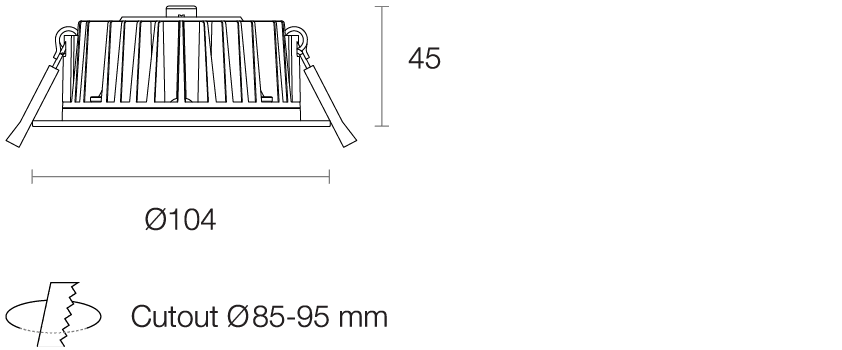

Dimensions (mm)

TL10 2x

Technical Characteristics

LED Power10W
LED TypeSMD
LED Lumen Output*1000 lm
Efficacy*Up to 87 lm/W
CCT TechnologySwitchable
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power11.7W Typical
Driver ModelTrend DR-TL10 (T/E)
