Product Evolution
We have invested into ongoing product development and customisation to continuously improve and evolve innovative products that you can rely on.
Utilising our product design knowledge and experience, we strive for continuous product development. Our engineering team collaborates with some of the biggest manufacturers in the world to bring you improvements in LED technology, increasing energy efficiency, LED efficacy and reflector technology.
Utilising our product design knowledge and experience, we strive for continuous product development. Our engineering team collaborates with some of the biggest manufacturers in the world to bring you improvements in LED technology, increasing energy efficiency, LED efficacy and reflector technology.
Over a decade of development
Miniled XDA
First designed in 2010 and originally a 13W fitting, the XDA13 has evolved into the Miniled XDA10 fitting that we offer to you today. Designed and developed in-house, this fitting is a perfect example of our product improvement process.

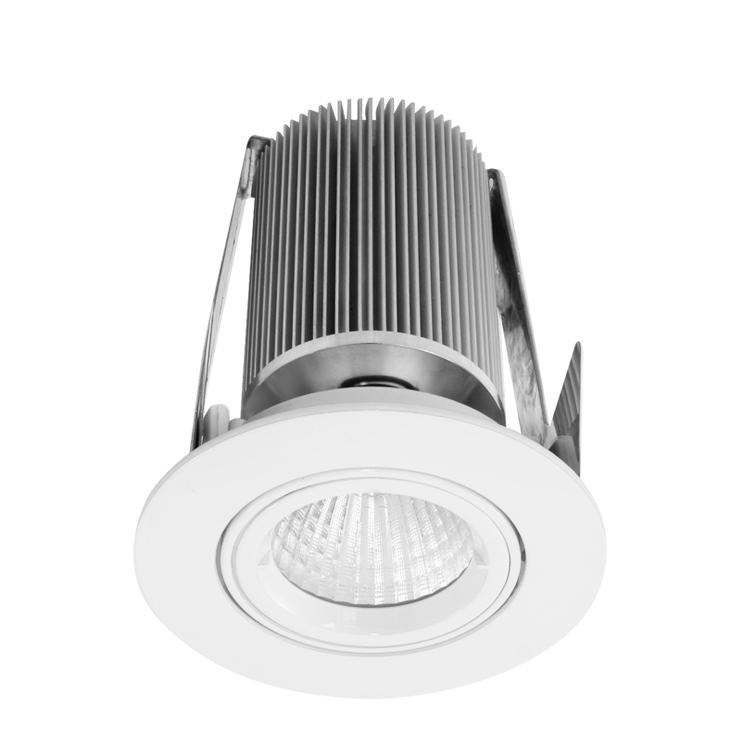

Miniled XDA13
13W Fixed LED Downlight
Colour Rendering: CRI 80+
Lumen Output: 1055 lm (4000K)
Beam Angle: Wide
Miniled XDA13
13W Adjustable LED Downlight
Colour Rendering: CRI 80+
Lumen Output: 1055 lm (4000K)
Beam Angle: Wide
• Transforms into an adjustable fitting
• Heatsink screws into face
Miniled XDA13 (Version 1)
13W Adjustable LED Downlight
Colour Rendering: CRI 85+
Lumen Output: 1150 lm (4000K)
Beam Angle: Medium, Wide
Dimming: Trailing Edge
• Shorter redesigned heatsink
• Increased lumen output
• Improved colour rendering (CRI)
• Medium beam angle available
Miniled XDA11 (Version 2)
11W Adjustable LED Downlight
Colour Rendering: CRI 85+
Lumen Output: 1170 lm (4000K)
Beam Angle: Medium, Wide
Dimming: Trailing Edge
• Stepped reflector is introduced
allowing for better optical control
Miniled XDA10
10W Adjustable LED Downlight
Colour Rendering: CRI 85+
Lumen Output: 1170 lm (4000K)
Beam Angle: Medium, Wide
Dimming: Trailing Edge
• Rated with 50,000 hours lifespan
• Shorter redesigned heatsink allowing
for smaller ceiling cavity installation
Miniled XDA10
10W Adjustable LED Downlight
Colour Rendering: CRI 85+
Lumen Output: 1170 lm (4000K)
Beam Angle: Narrow, Medium, Wide
Dimming: Trailing Edge
• New pin heatsink
• Pressure cast aluminium heatsink
• Narrow beam angle available
Miniled XDA10
10W Adjustable LED Downlight
Colour Rendering: CRI 90+
Lumen Output: 1170 lm (4000K)
Beam Angle: Narrow, Medium, Wide
Dimming: Trailing Edge
• Increased colour rendering (CRI)
Miniled XDA10
10W Adjustable LED Downlight
Colour Rendering: CRI 90+
Lumen Output: 1390 lm (4000K)
Beam Angle: Narrow, Medium, Wide
Dimming: L&T, DALI, 1-10V
• Increased lumen output
• Multiple dimming options available
• Wider heatsink for better ceiling clearance
• Better thermal performance with
improved heatsink
Miniled XDA10
10W Adjustable LED Downlight
Colour Rendering: CRI 90+
Lumen Output: 1450 lm (4000K)
Beam Angle: Narrow, Medium, Wide
Dimming: L&T, DALI, 1-10V
• Revised and improved LED chip
• Increased lumen output
