Bayled TPU90150

Bayled TPU90150

IP65 & IK10 Rated Tri-select Highbay
Options

  • Highbay manufactured with a robust integrated aluminium heatsink and precision-engineered cooling fins for optimal heat dissipation, ensuring longevity and efficiency
  • Equipped with a heavy-duty loop and hook for secure mounting, it also offers additional mounting options upon request, providing versatility to suit various installation needs
  • Featuring tri-select technology, allowing users to switch between three wattage options (90W, 120W, 150W), three beam angles (60°, 90°, 120°) and three CCT options (3000K, 4000K, 5000K) offering the ultimate versatility for high bay applications
  • Supplied with an integral flicker free IP65 rated driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDSMD Colour
Icons Technical RGB CCT Tech TRI Colour
Icon type CRI var CRI80
Icon type Beam Angle var ADJ
Icon IP65
Icons Technical RGB IK10 Bang Black
Icons Technical RGB Warranty3 YR Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀280 X 142 (H) mm
Weight1653 g

General Characteristics

Family
Trend For Trade,
Bayled
Surface
Ceiling
Mounting
Suspended
Ingress ProtectionIP65
Impact ResistanceIK10
Warranty3 Years

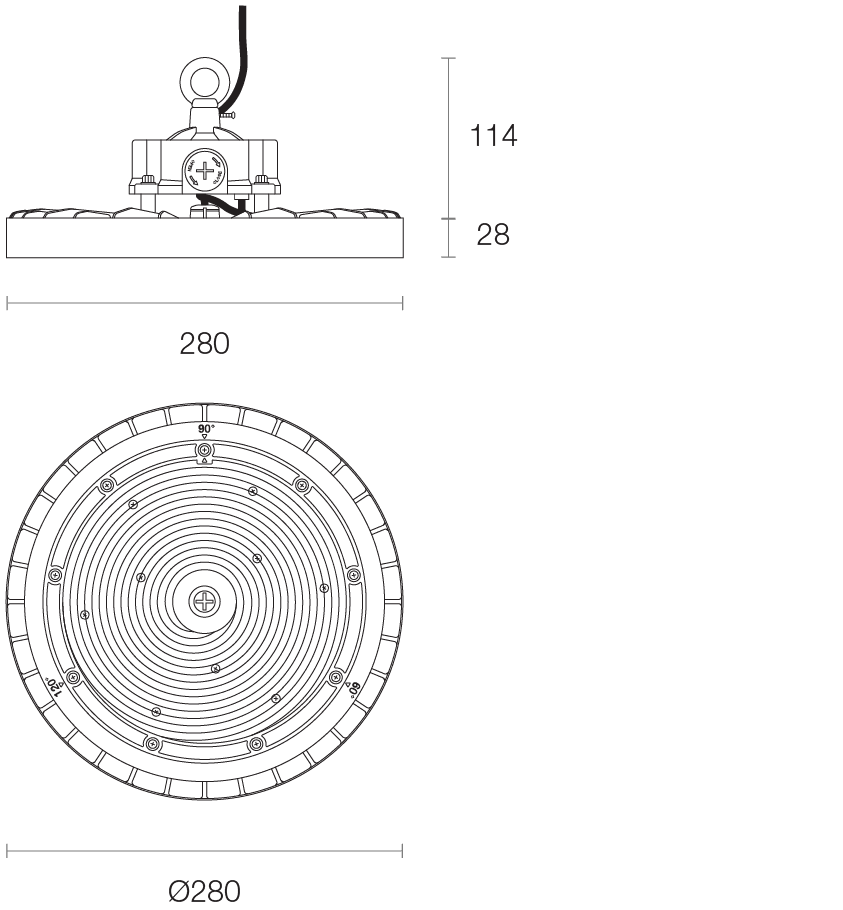

Dimensions (mm)

TPU90150 2x

Technical Characteristics

LED PowerSwitchable 90W, 120W, 150WW
LED TypeSMD
LED Lumen Output*12500 lm, 17400 lm, 21000 lm
Efficacy*139 lm/W, 145 lm/W, 140 lm/W
CCT TechnologyTri-colour Selectable
Lifetime50,000 hours
System Power93.4W, 122.3W, 151.8W Typical
Driver ModelTrend DR-TPU90150 (Non-dim)
