Econoled EA7

Econoled EA7

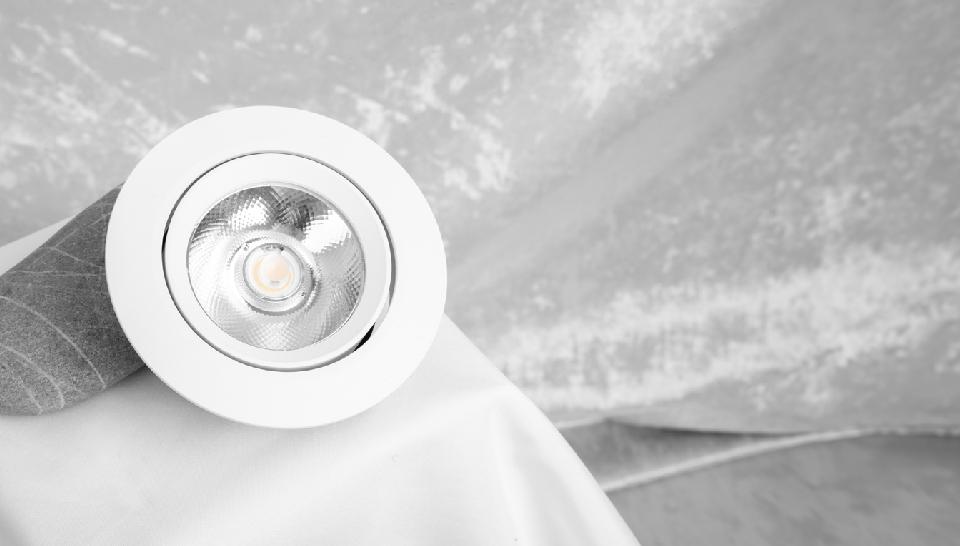

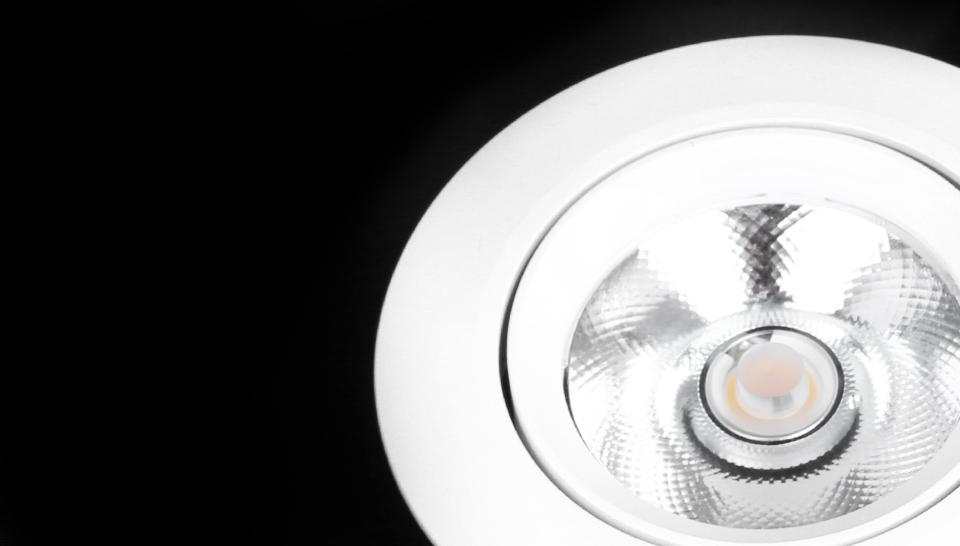

7W Recessed Adjustable Downlight
Options

  • Recessed petite adjustable LED downlight with low profile, suitable for applications with low ceiling clearance
  • Equipped with a front collimator lens and powered by a high output COB LED
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var MB
Icon IP20
Icons Technical CMYK ICCA90 Grey
Icons Technical RGB Australian Red
Econoled EA7 1
Econoled EA7 2
1
2

Physical Characteristics

Dimensions⌀90 X 35 (H) mm
Weight160 g
Tilt Angle15°
CutoutCircle - 76 mm
Spring Height20 mm

General Characteristics

Family
Econoled
Surface
Ceiling
Mounting
Recessed
Insulation ContactCA90
Ingress ProtectionIP20

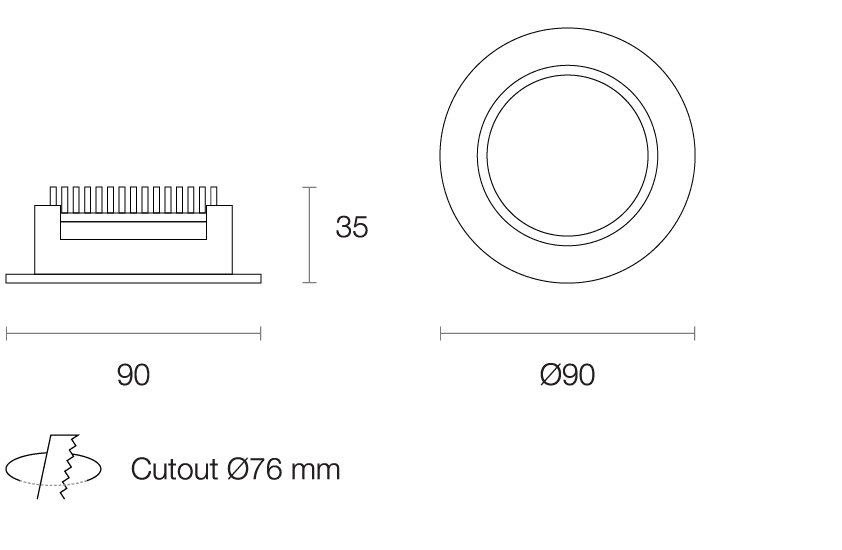

Dimensions (mm)

EA7 2x

Technical Characteristics*

LED Power7W
LED TypeCOB
LED Lumen Output*950 lm
Luminous Flux*742 lm
Efficacy*90.49 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power8.2W Typical
Driver ModelTrend 150210-200 (L&T)
* Based on: 4000K, CRI 90+ Standard
