Econoled ER7

Econoled ER7

7W IP65 Rated Recessed Tri-colour Downlight
Options

  • Recessed COB LED fixed downlight with thin trim profile and deep conical housing
  • Manufactured with an aluminium body and finished with corrosion resistant powder coating
  • An ideal lighting solution for residential and commercial applications
  • Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
  • Supplied with remote flicker free Leading & Trailing Edge dimmable driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icons Technical RGB CCT Tech TRI Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP65
Icons Technical RGB IC4 Grey
Icons Technical RGB Warranty3 YR Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀100 X 88 (H) mm
Weight175 g
CutoutCircle - 90 - 92 mm
Spring Height20 mm

General Characteristics

Family
Trend For Trade,
Econoled
Surface
Ceiling
Mounting
Recessed
Insulation ContactIC-4
Ingress ProtectionIP65
Warranty3 Years

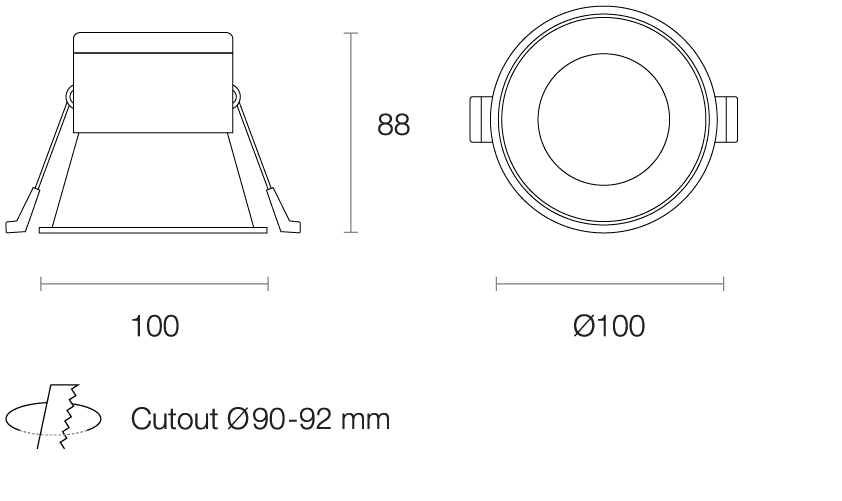

Dimensions (mm)

ER7 2x

Technical Characteristics

LED Power7W
LED TypeCOB
LED Lumen Output*802 lm
Efficacy*Up to 96 lm/W
CCT TechnologyTri-colour Selectable
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power8.3W Typical
Driver ModelTrend 150210-200 (L&T)
