Flexiled XF12120

Flexiled XF12120

15W/m 12V DC Flexible Strip
Options

  • Flexible LED strip with a close pitch of 120 LEDs per metre for reduced spotting effects
  • Available in reels up to 5 metres with a cutting interval of 25 mm
  • Supplied with 3M adhesive backing for quick and easy installation
  • CRI 90+ available in 2700K, 3000K, 4000K and 5000K CCT options
  • Can be paired with a range of extrusion profiles to suit a variety of lighting applications
Product Standards
Icons Technical RGB Voltage12 V Colour
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI90
Icon IP10
Icons Technical RGB Australian Red

Physical Characteristics LED Strip

Dimensions1000 (L) X 11.5 (W) X 2 (H) mm
Max Reel Length5000 mm*
* Custom Lengths Available

General Characteristics

Family
Flexiled
Surface
Ceiling|
Floor|
Wall
Mounting
Surface Mounted
Ingress ProtectionIP10

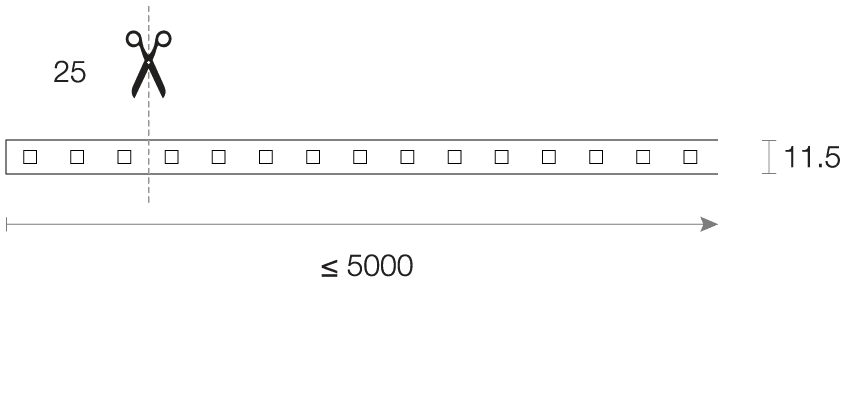

Dimensions (mm)

XF12120 2x

Technical Characteristics*

Input Voltage12V DC
LED Power15W per metre
LED TypeSMD
LED Lumen Output*1500 lm
Colour DeviationSDCM ≤ 3
Lifetime50,000 hrs
LED Pitch120 LEDs per metre
LED Cutting Increment25 mm (3 LEDs)
BackingAdhesive Backing 3M 300LSE
Cooper Content2oz PCB
Driver ModelTrend 150308 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
Applicable Extrusions for Flexiled XF12120
Extrusion EX1
Extrusion EX1
EX1
Extrusion EX12R
Extrusion EX12R
EX12R
Extrusion EX2
Extrusion EX2
EX2
Extrusion EX3
Extrusion EX3
EX3
Extrusion EX241
Extrusion EX241
EX241
Extrusion EX4
Extrusion EX4
EX4
Extrusion EX5
Extrusion EX5
EX5
Extrusion EX6
Extrusion EX6
EX6
Extrusion EX7
Extrusion EX7
EX7
Extrusion EX8
Extrusion EX8
EX8
Extrusion EXM
Extrusion EXM
EXM
Extrusion ZDA
Extrusion ZDA
ZDA
Extrusion ZDA-D
Extrusion ZDA-D
ZDA-D
Extrusion ZDA-DI
Extrusion ZDA-DI
ZDA-DI
1
14 Extrusions
