Maxiled XDF40

Maxiled XDF40

35W IP65 Recessed Downlight
Options

  • Recessed IP65 rated LED downlight known for its quality, reliability and performance
  • Sealed face with silicone gasket for increased ingress protection
  • Equipped with large pressure cast aluminium heatsink, providing effective thermal management for a high output and long lifespan
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 97+ and CRI 93+ VIVID available in 2700K, 3000K, and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP65
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀180 X 155 (H) mm
Weight1200 g
CutoutCircle - 150 mm
Spring Height35 mm

General Characteristics

Family
Maxiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP65

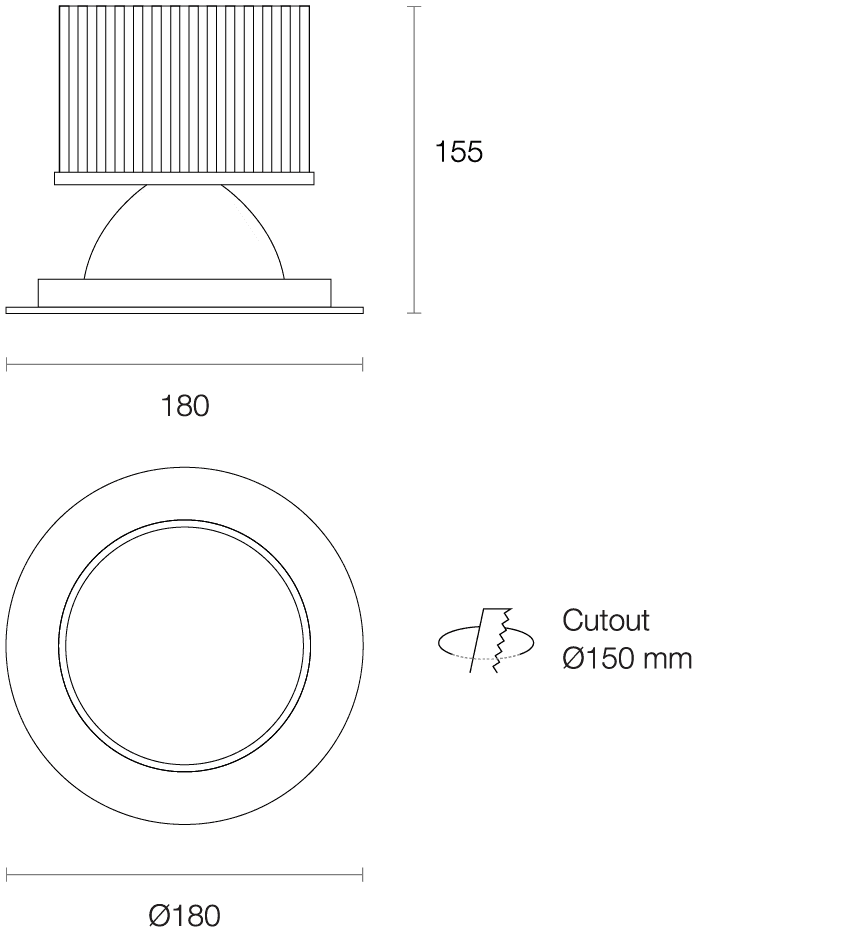

Dimensions (mm)

XDF40 2x

Technical Characteristics*

LED Power35W
LED TypeCOB
LED Lumen Output*4746 lm
Luminous Flux*3333 lm
Efficacy*88.88 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power37.5W Typical
Driver ModelTrend 150027-1000 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
