Maxiled XFS40

Maxiled XFS40

36W Recessed Adjustable Rectangular Shop Light
Options

  • Recessed adjustable LED rectangular shop light
  • Features 65° drop out tilt design for versatile lighting applications
  • Black anodised aluminium heatsink provides effective thermal management ensuring high light output and long lifespan
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions230 (L) X 140 (W) X 190 (H) mm
Weight1525 g
Tilt Angle65°
CutoutRectangle - 215 x 125 mm
Spring Height30 mm

General Characteristics

Family
Maxiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

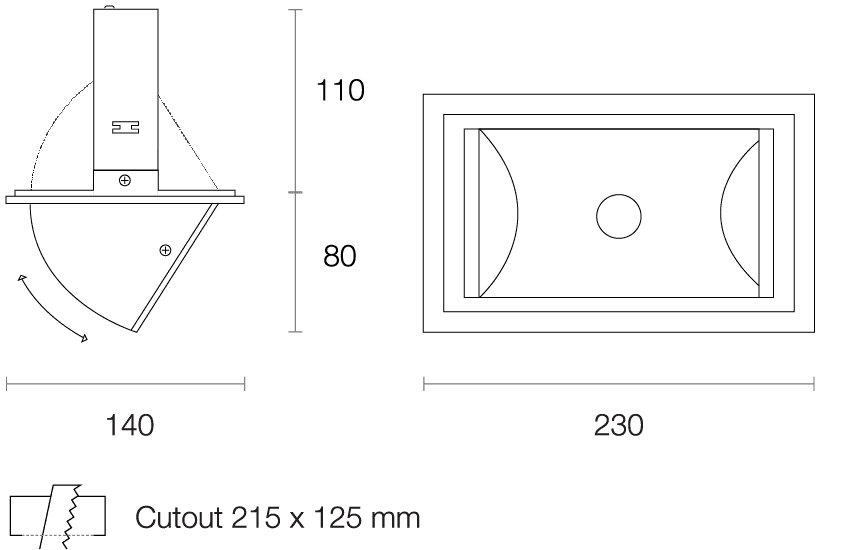

Dimensions (mm)

XFS40 2x

Technical Characteristics*

LED Power36W
LED TypeCOB
LED Lumen Output*4760 lm
Luminous Flux*3461 lm
Efficacy*90.84 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L70)
System Power38.1W Typical
Driver ModelTrend 150027-1000 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
