Maxiled XLC35

Maxiled XLC35

35W Recessed Downlight
Options

  • Recessed LED downlight with dual reflector design for visual comfort
  • Manufactured with an aluminum body and finish
  • A variety of sizes, power and trim options available (XLC10, XLC25, XLCL25 and XLCL35)
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var MB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀230 X 140 (H) mm
Weight1095 g
CutoutCircle - 205 - 220 mm
Spring Height25 mm

General Characteristics

Family
Maxiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

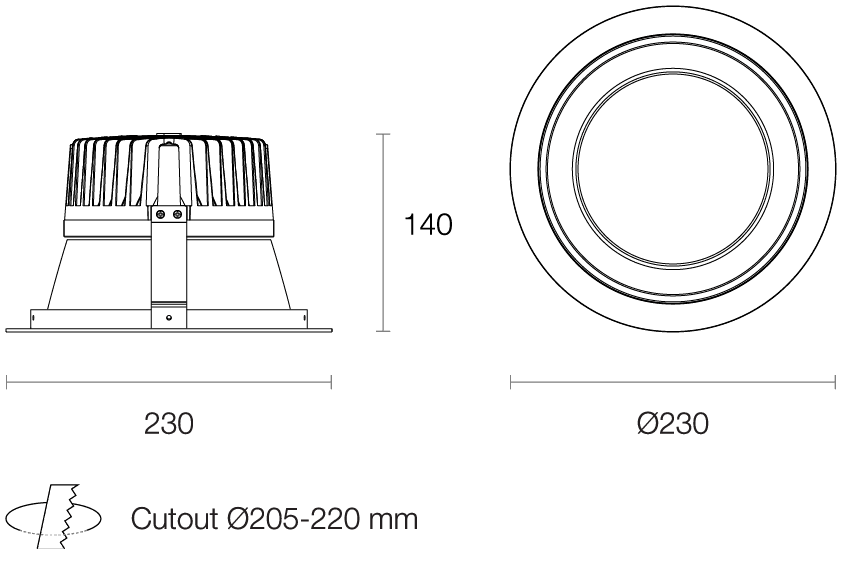

Dimensions (mm)

XLC35 2x

Technical Characteristics*

LED Power35W
LED TypeCOB
LED Lumen Output*4746 lm
Luminous Flux*3535 lm
Efficacy*94.27 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80)
System Power37.5W Typical
Driver ModelTrend 150027-1000 (L&T)
* Based on: 4000K, CRI 90+ Standard
