Maxiled XRS20

Maxiled XRS20

26W Recessed Adjustable Pull-out Downlight
Options

  • Recessed LED downlight with adjustable ‘pull-out’ gimbal design
  • Designed with a wide tilt adjustment of 80°, ultimate choice for highlighting vertical shelves, signage and merchandise
  • Anodised black heatsink provides effective thermal management ensuring high output and long lifespan
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB Insert White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀145 X 102 (H) mm
Weight493 g
Tilt Angle80°
Rotation355°
CutoutCircle - 120 - 130 mm
Spring Height40 mm

General Characteristics

Family
Maxiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

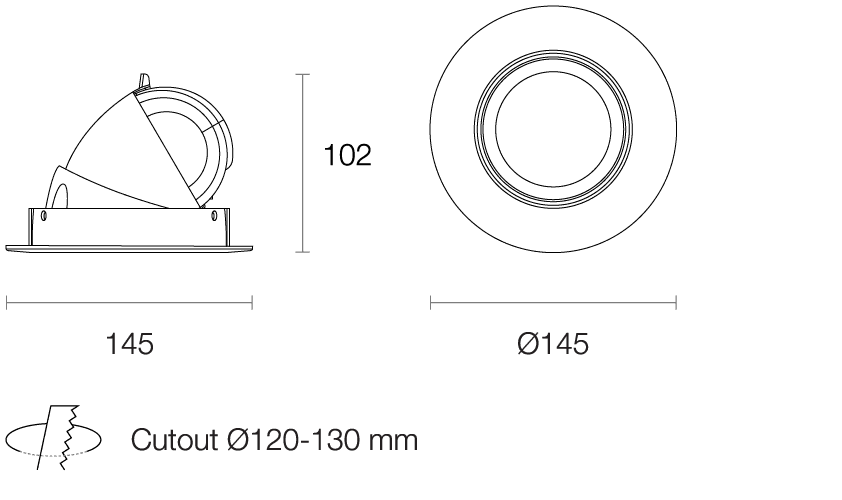

Dimensions (mm)

XRS20 2x

Technical Characteristics*

LED Power26W
LED TypeCOB
LED Lumen Output*2955 lm
Luminous Flux*2263 lm
Efficacy*85.72 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L70)
System Power26.4W Typical
Driver ModelTrend 150020-700 (L&T)
* Based on: 4000K, CRI 90+ Standard
