Maxipendant XPM160

Maxipendant XPM160

160W High-powered Aluminium Dome Pendant
Options

  • Suspended high-powered LED pendant characterised by its industrial appearance and high light output
  • Equipped with spun aluminium reflector and large passive heatsink, providing effective thermal management and ensuring high output and long lifespan
  • CRI 90+ available in 3000K, 4000K and 5000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim Raw Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀425 X 525 (H) mm
Weight6250 g

General Characteristics

Family
Maxipendant
Surface
Ceiling
Mounting
Suspended
Ingress ProtectionIP20

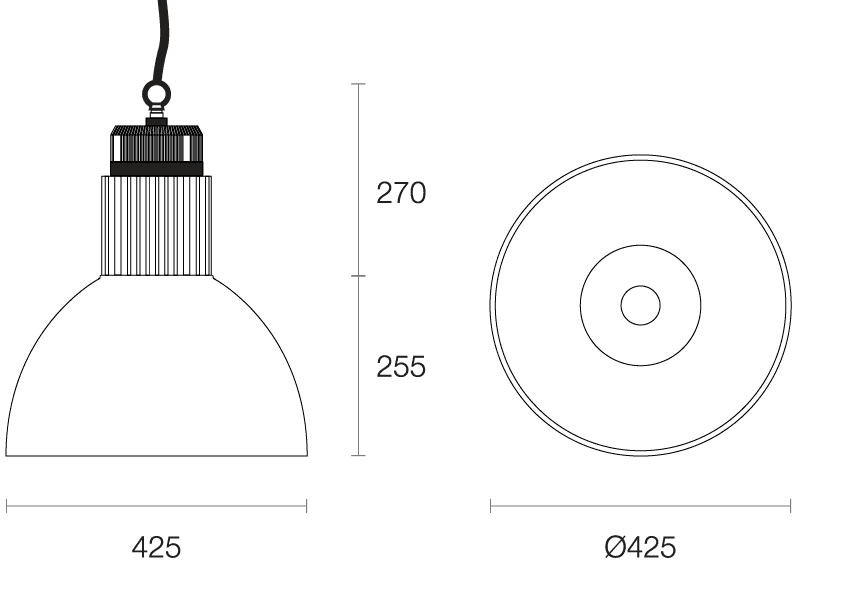

Dimensions (mm)

XPM160 2x

Technical Characteristics*

LED Power160W
LED TypeCOB
LED Lumen Output*20000 lm
Luminous Flux*14049 lm
Efficacy*78.93 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80)
System Power178W Typical
Driver ModelTrend 150063 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
