Medical ZPM40-MED

Medical ZPM40-MED

33W COI Compliant Recessed Square Panel Light
Options

  • Square LED panel light specifically designed to meet Cyanosis Observation Index requirements, an ideal lighting solution for visual cyanosis detection and healthcare applications
  • Designed with powder coated extruded aluminium frame with low glare and high transparency microprismatic diffuser
  • Suitable for mounting in metric T-Bar ceiling applications
  • Can be configured with different mounting kits - suspended, surface mounted and plaster recessed
  • CRI 92+ Medical in COI compliant 4000K option
  • Supplied with a remote driver for easy installation
Product Standards
Icons Technical RGB COI Red
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icons Technical RGB CRI92 Colour
Icon type Beam Angle var UW
Icon IP40
Icons Technical CMYK ICCA90 Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions595 (L) X 595 (W) X 12 (H) mm
Weight2350 g

General Characteristics

Family
Panel,
Medical
Surface
Ceiling
Mounting
Recessed|
Surface Mounted|
Suspended
Insulation ContactCA90
Ingress ProtectionIP40

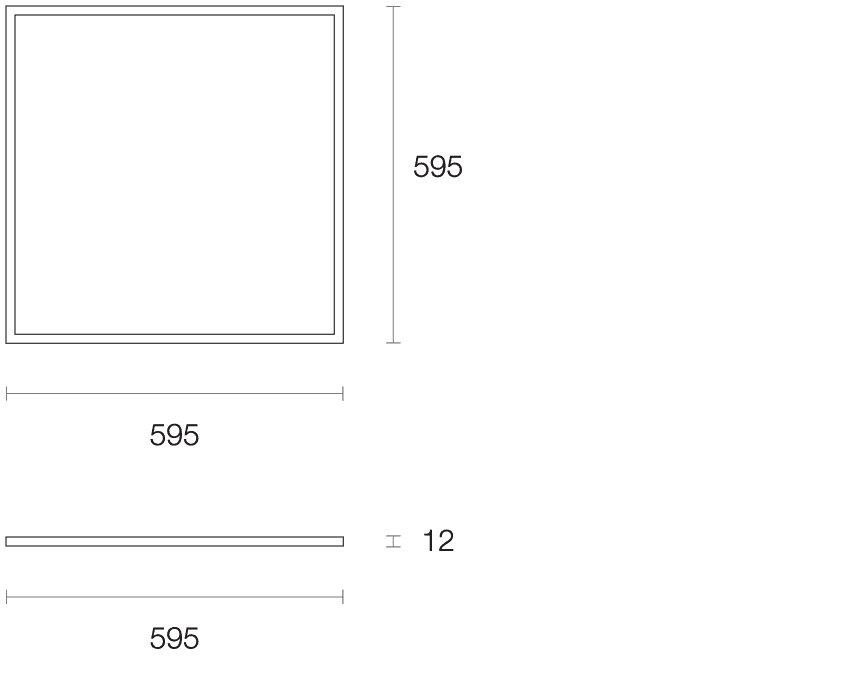

Dimensions (mm)

ZPM40 MED 2x

Technical Characteristics*

LED Power33W
LED TypeSMD
LED Lumen Output*4800 lm
Luminous Flux*4083 lm
Efficacy*114.37 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80 B10)
COI (Cyanosis Observation Index)<3.3 per AS/NZS 1680.2.5
System Power35.7W Typical
Driver ModelTrend 150027-1000 (Non-dim)
* Based on: 4000K, CRI 92+ Medical
