Megaled XLA40

Megaled XLA40

40W Recessed Downlight
Options

  • Recessed LED downlight, featuring large diameter and cut-out ideal for use in place of existing CFL downlights
  • Black anodised pressure cast aluminium heatsink provides optimal thermal management ensuring high output and long lifespan
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀230 X 175 (H) mm
Weight1300 g
CutoutCircle - 200 mm

General Characteristics

Family
Megaled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

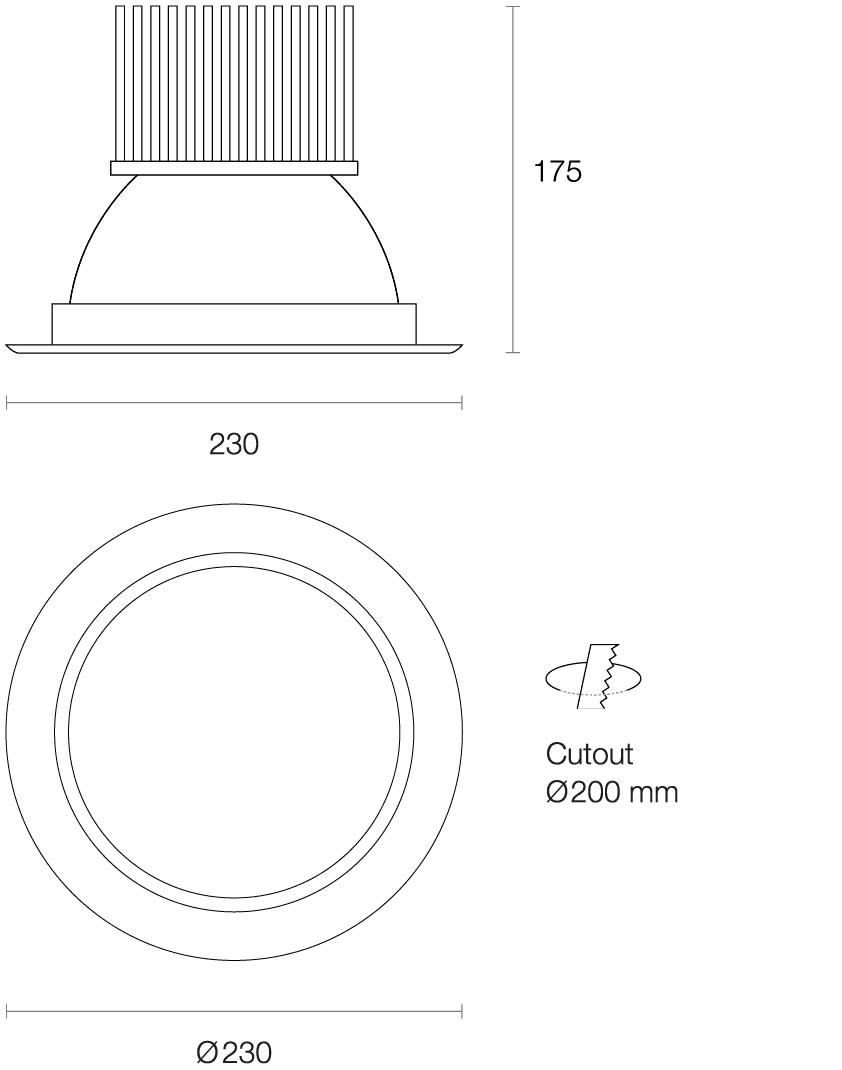

Dimensions (mm)

XLA40 2x

Technical Characteristics*

LED Power40W
LED TypeCOB
LED Lumen Output*4746 lm
Luminous Flux*3196 lm
Efficacy*81.53 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours
System Power39.2W Typical
Driver ModelTrend 150027-1000 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
