Megaled XLB60

Megaled XLB60

60W Recessed Downlight
Options

  • Recessed LED downlight, featuring large diameter and cut-out ideal for use in place of existing CFL downlights
  • Black anodised pressure cast aluminium heatsink provides optimal thermal management ensuring high output and long lifespan
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP44
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀225 X 155 (H) mm
Weight1300 g
CutoutCircle - 200 mm

General Characteristics

Family
Megaled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP44

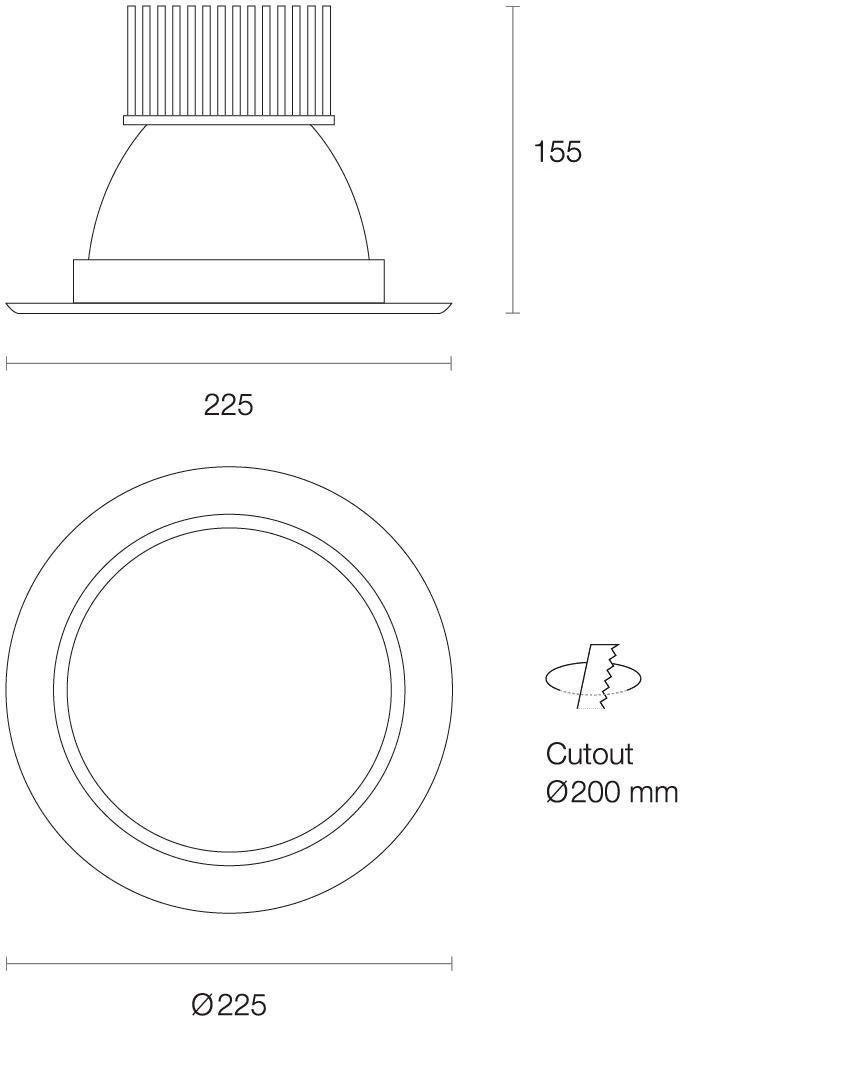

Dimensions (mm)

XLB60 2x

Technical Characteristics*

LED Power60W
LED TypeCOB
LED Lumen Output*6908 lm
Luminous Flux*5115 lm
Efficacy*81.06 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours
System Power63.1W Typical
Driver ModelTrend 150090-1000 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
