Midiled XDF15

Midiled XDF15

15W IP65 Rated Recessed Downlight
Options

  • Recessed LED downlight with IP65 rating characterised by its quality, light efficiency and performance
  • Manufactured with an aluminium body and powder coat finish
  • Large pin fin heatsink for optimal thermal management
  • A wide choice of power options and sizes available (XDF10, XDF25, XDF35 and XDF55)
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB Insert White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP65
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀150 X 125 (H) mm
Weight490 g
CutoutCircle - 120 mm
Spring Height32 mm

General Characteristics

Family
Midiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP65

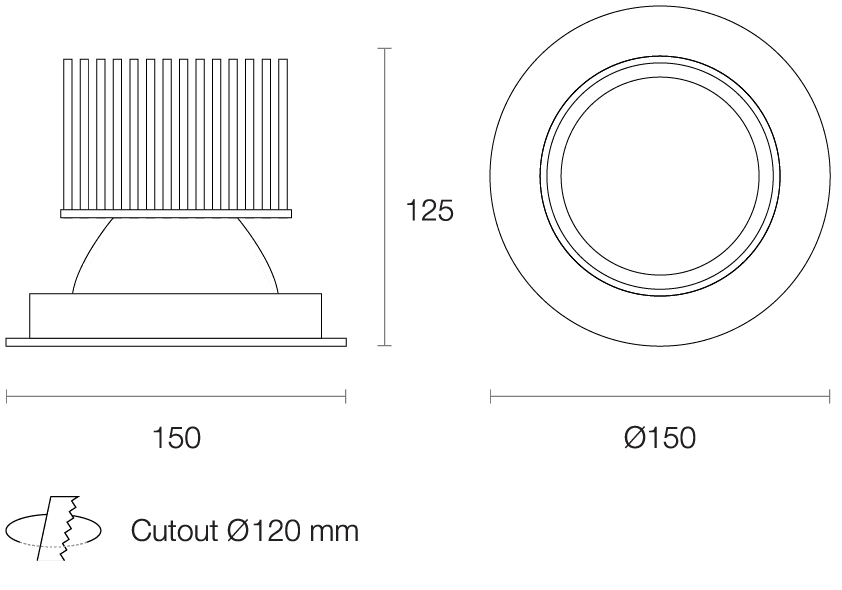

Dimensions (mm)

XDF15 2x

Technical Characteristics*

LED Power15W
LED TypeCOB
LED Lumen Output*2004 lm
Luminous Flux*1613 lm
Efficacy*88.63 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power18.2W Typical
Driver ModelTrend 150016-420 (L&T)
* Based on: 4000K, CRI 90+ Standard
Our featured projectsView all our ProjectsArrow Right

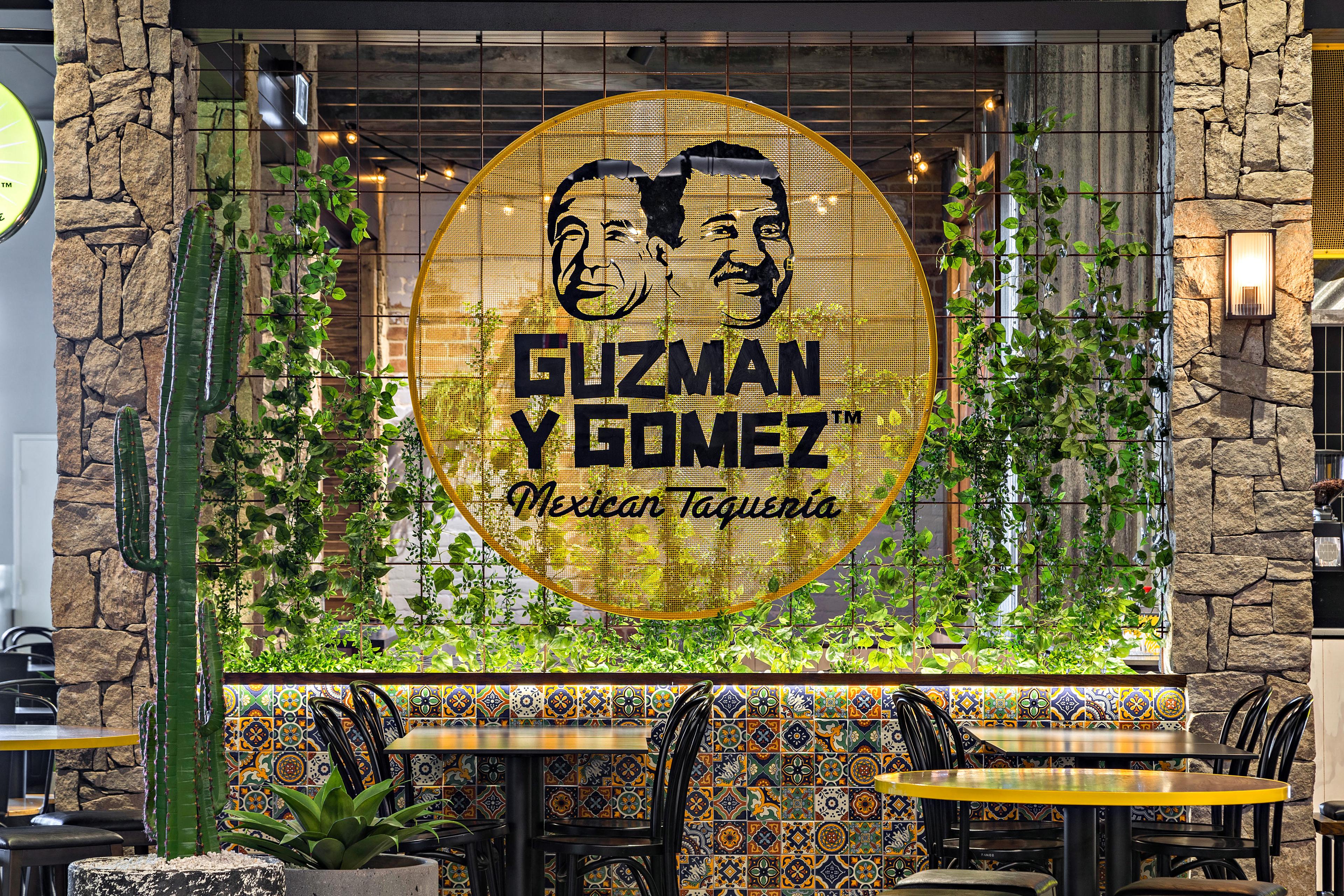

imageGuzman Y Gomez, Kirrawee NSW
