Midiled XDM10

Midiled XDM10

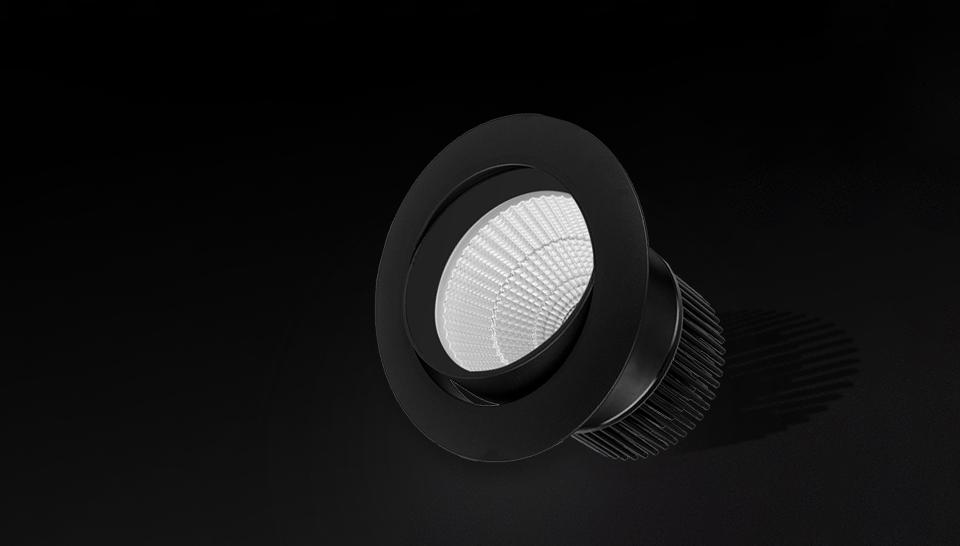

10W Adjustable Recessed Downlight
Options

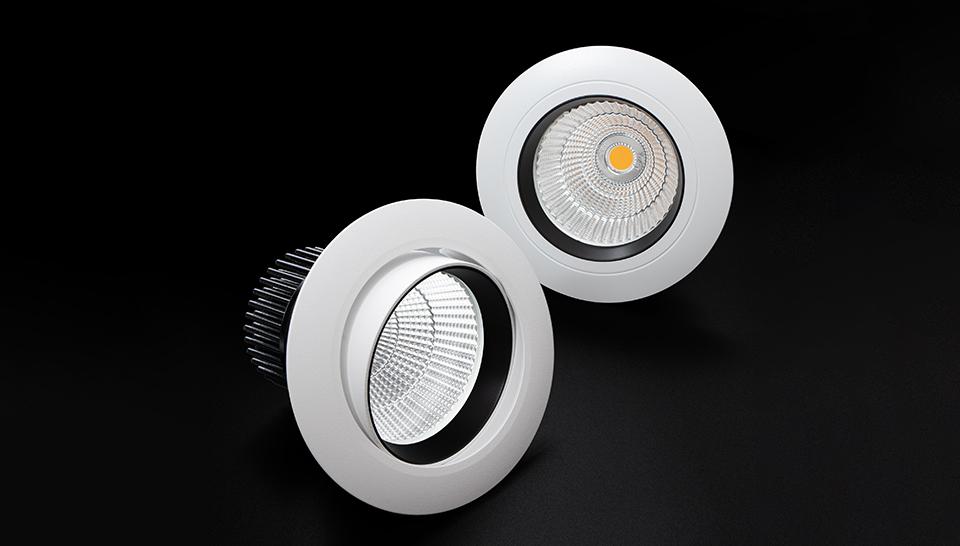

  • Recessed adjustable LED downlight, distinctively characterised by its configurable inserts that can suit any interior scheme
  • A wide variety of colour, sizes and power available (XDM15, XDM25 and XDM30)
  • Manufactured with an aluminium body and finished with corrosion resistant powder coating⁠
  • Oversized pin fin heatsink for thermal management
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options
  • CRI 97+ and CRI 93+ VIVID available in 2700K, 3000K, and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB Insert White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red
Midiled XDM Insitu1
DSCF0422
Midiled XDM Insitu2
1
3

Physical Characteristics

Dimensions⌀150 X 125 (H) mm
Weight470 g
Tilt Angle25°
CutoutCircle - 120 mm
Spring Height32 mm

General Characteristics

Family
Midiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

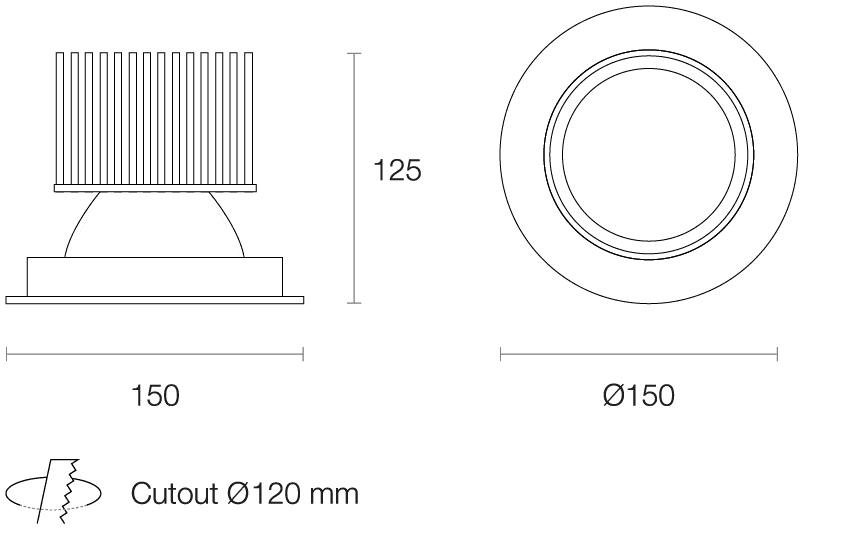

Dimensions (mm)

XDM10 2x

Technical Characteristics*

LED Power10W
LED TypeCOB
LED Lumen Output*1450 lm
Luminous Flux*1075 lm
Efficacy*91.88 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power11.7W Typical
Driver ModelTrend 150218-300 (L&T)
* Based on: 4000K, CRI 90+ Standard
