Midiled XDS10

Midiled XDS10

10W Recessed Downlight
Options

  • Recessed LED downlight characterised by its quality, light efficiency and performance
  • Manufactured with an aluminium body and powder coat finish
  • Large pin fin heatsink for optimal thermal management
  • Also available in other configurations (XDS15, XDS25 and XDS35)
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP44
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀130 X 110 (H) mm
Weight370 g
CutoutCircle - 115 mm
Spring Height22 mm

General Characteristics

Family
Midiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP44

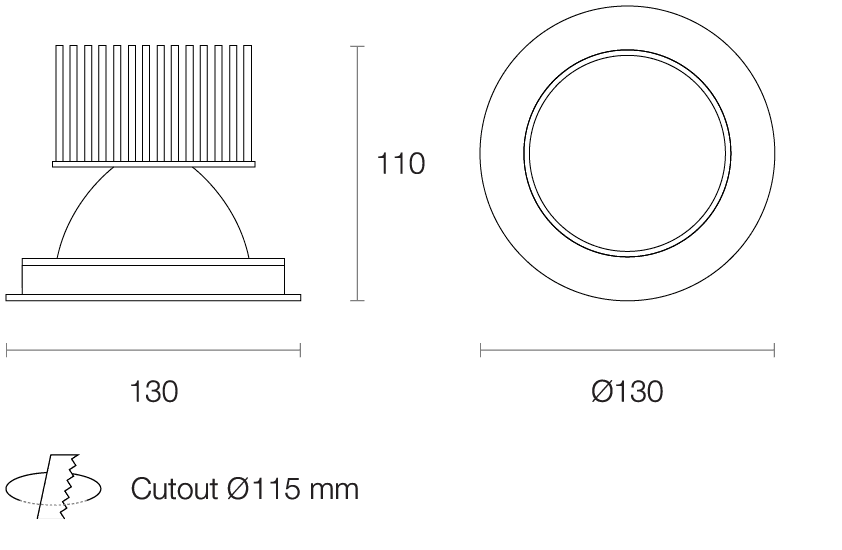

Dimensions (mm)

XDS10 2x

Technical Characteristics*

LED Power10W
LED TypeCOB
LED Lumen Output*1450 lm
Luminous Flux*1082 lm
Efficacy*92.48 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80)
System Power11.7W Typical
Driver ModelTrend 150218-300 (L&T)
* Based on: 4000K, CRI 90+ Standard
