Midiled XMC125

Midiled XMC125

25W Recessed Adjustable Square Downlight
Options

  • Single recessed adjustable LED downlight in square housing
  • Also available in a twin configuration (XMC225) or as a row of three (XMC325)
  • CRI 90+ available in 3000K and 4000K CCT options
  • Anodised black heatsink for effective thermal management ensuring high output and long lifespan
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var MB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions175 (L) X 175 (W) X 110 (H) mm
Weight1350 g
Tilt Angle35º x 35°
CutoutSquare - 160 mm
Spring Height35 mm

General Characteristics

Family
Midiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

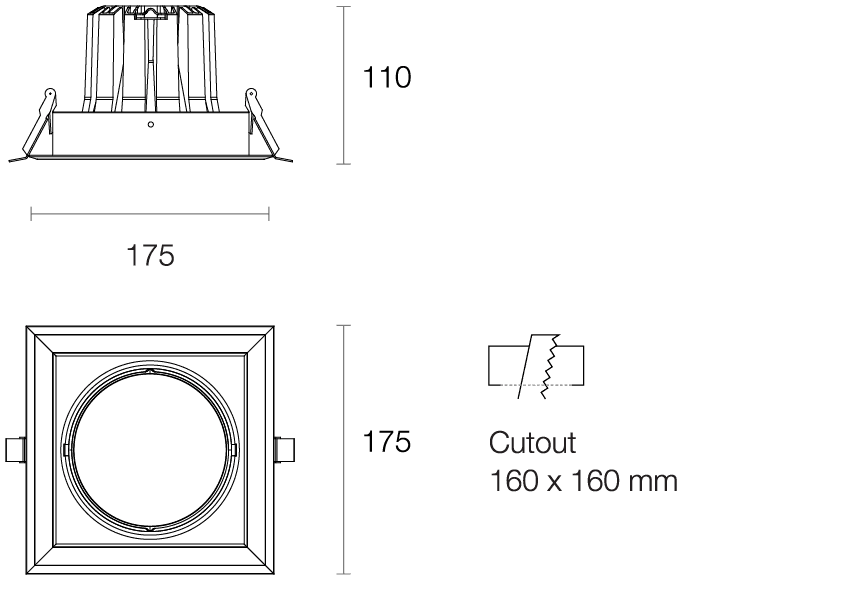

Dimensions (mm)

XMC125 2x

Technical Characteristics*

LED Power25W
LED TypeCOB
LED Lumen Output*2955 lm
Luminous Flux*2500 lm
Efficacy*94.70 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80)
System Power26.4W Typical
Driver ModelTrend 150020-700 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
Our featured projectsView all our ProjectsArrow Right

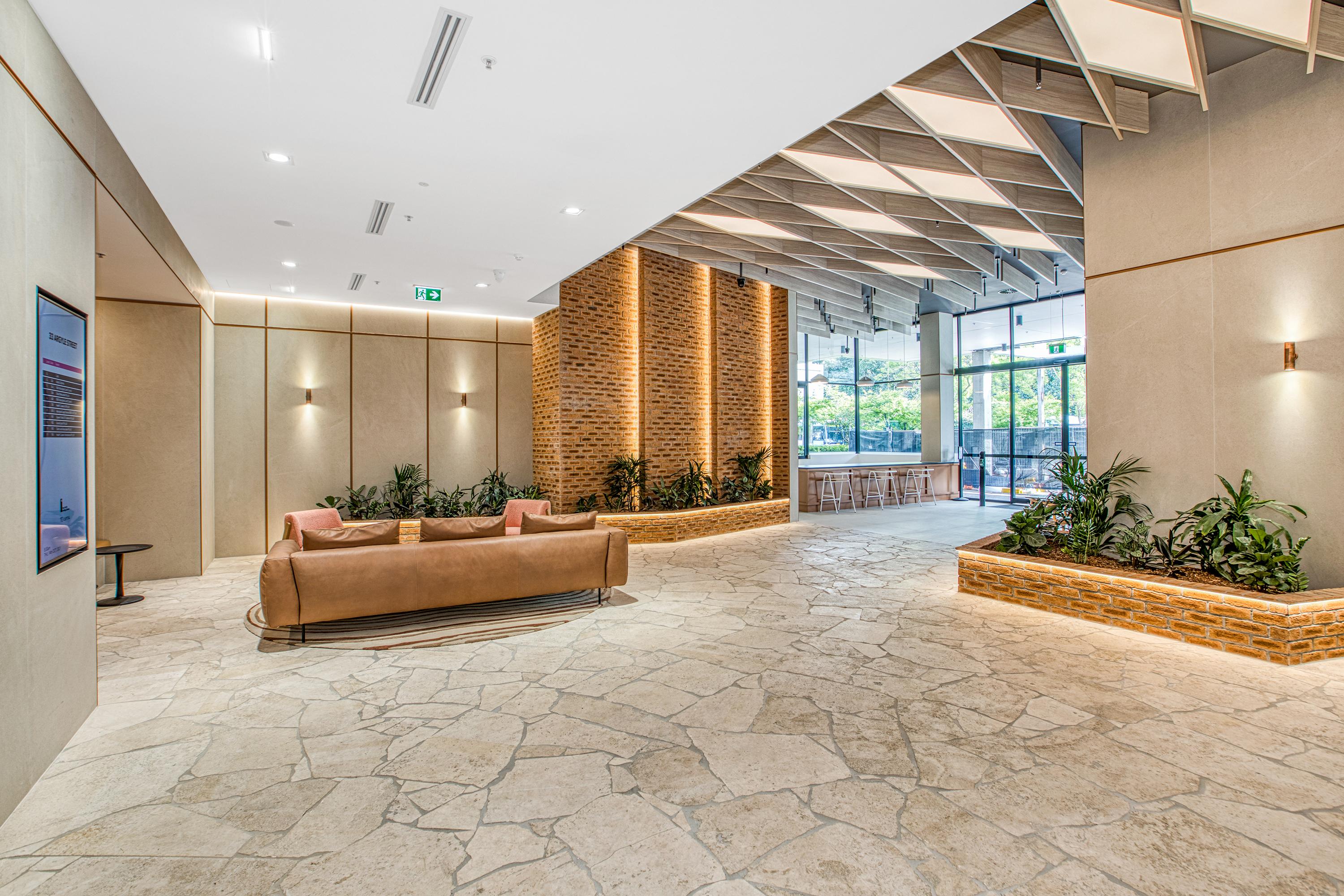

image33 Argyle Street, Parramatta NSW
