Midiled XRA20

Midiled XRA20

18W Recessed Adjustable Downlight
Options

  • Recessed adjustable LED downlight with configurable inserts, providing versatility in lighting and aesthetic design
  • Featured with 355° rotation and 45° tilting capabilities, allowing for directional adjustment in a variety of lighting applications
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB Insert White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var MB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀135 X 170 (H) mm
Weight890 g
Tilt Angle45°
Rotation355°
CutoutCircle - 122 mm
Spring Height24 mm

General Characteristics

Family
Midiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

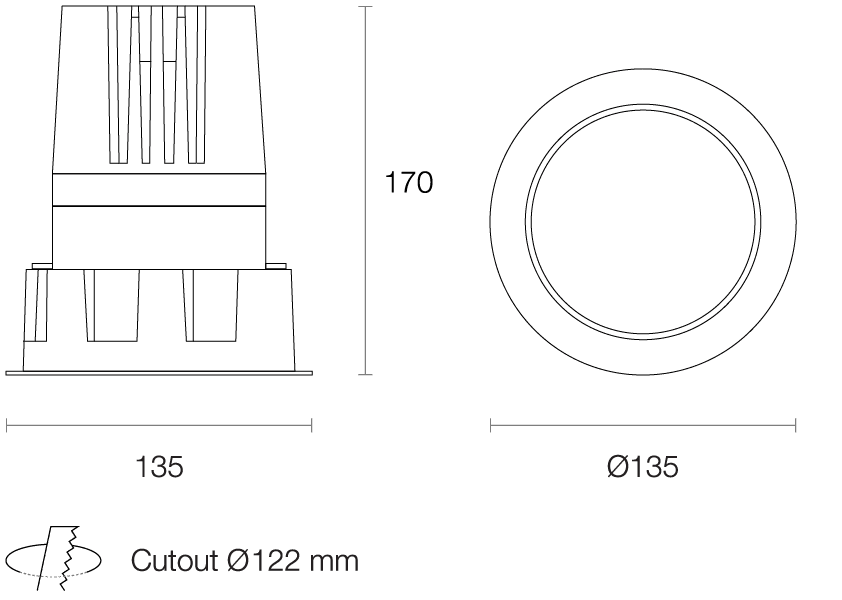

Dimensions (mm)

XRA20 2x

Technical Characteristics*

LED Power18W
LED TypeCOB
LED Lumen Output*2266 lm
Luminous Flux*1248 lm
Efficacy*62.40 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power20W Typical
Driver ModelTrend 150016-420 (L&T)
* Based on: 4000K, CRI 90+ Standard
