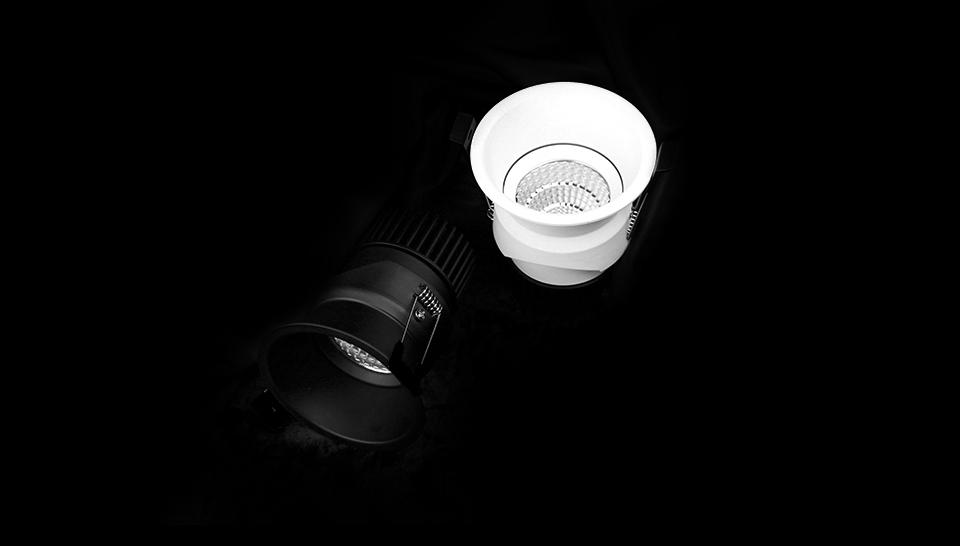

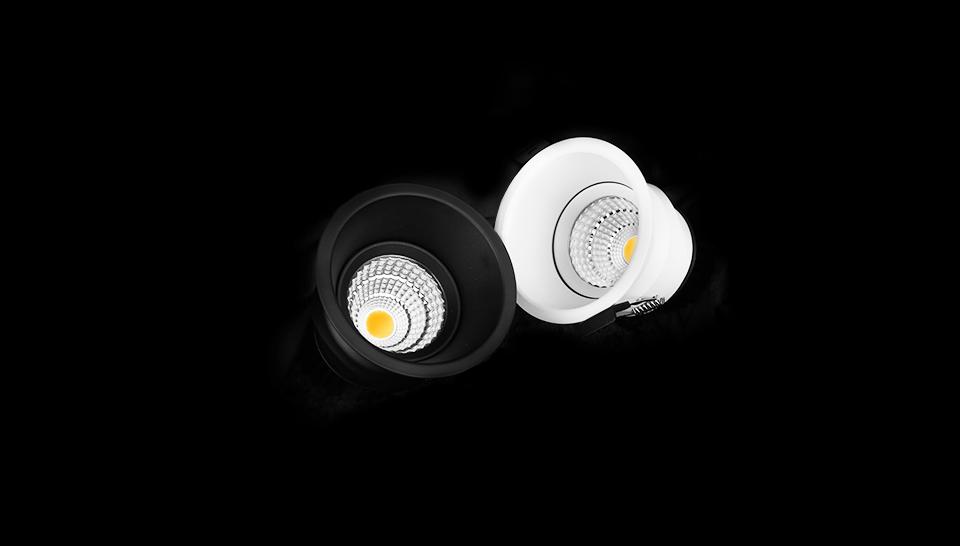

Miniled XDT10

Miniled XDT10

10W Recessed Adjustable Downlight
Options

  • Recessed adjustable LED downlight with thin trim profile coupled with a low glare conical housing
  • Manufactured with an aluminium body and powder coat finish
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical CMYK ICCA90 Grey
Icons Technical RGB Australian Red
Miniled XDT 1
Miniled XDT 2
1
2

Physical Characteristics

Dimensions⌀90 X 105 (H) mm
Weight215 g
Tilt Angle20°
CutoutCircle - 78 mm
Spring Height45 mm

General Characteristics

Family
Miniled
Surface
Ceiling
Mounting
Recessed
Insulation ContactCA90
Ingress ProtectionIP20

Dimensions (mm)

XDT10 2x Construction Drawing

Technical Characteristics*

LED Power10W
LED TypeCOB
LED Lumen Output*1450 lm
Luminous Flux*973 lm
Efficacy*83.16 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80)
System Power11.7W Typical
Driver ModelTrend 150218-300 (L&T)
* Based on: 4000K, CRI 90+ Standard
Our featured projectsView all our ProjectsArrow Right

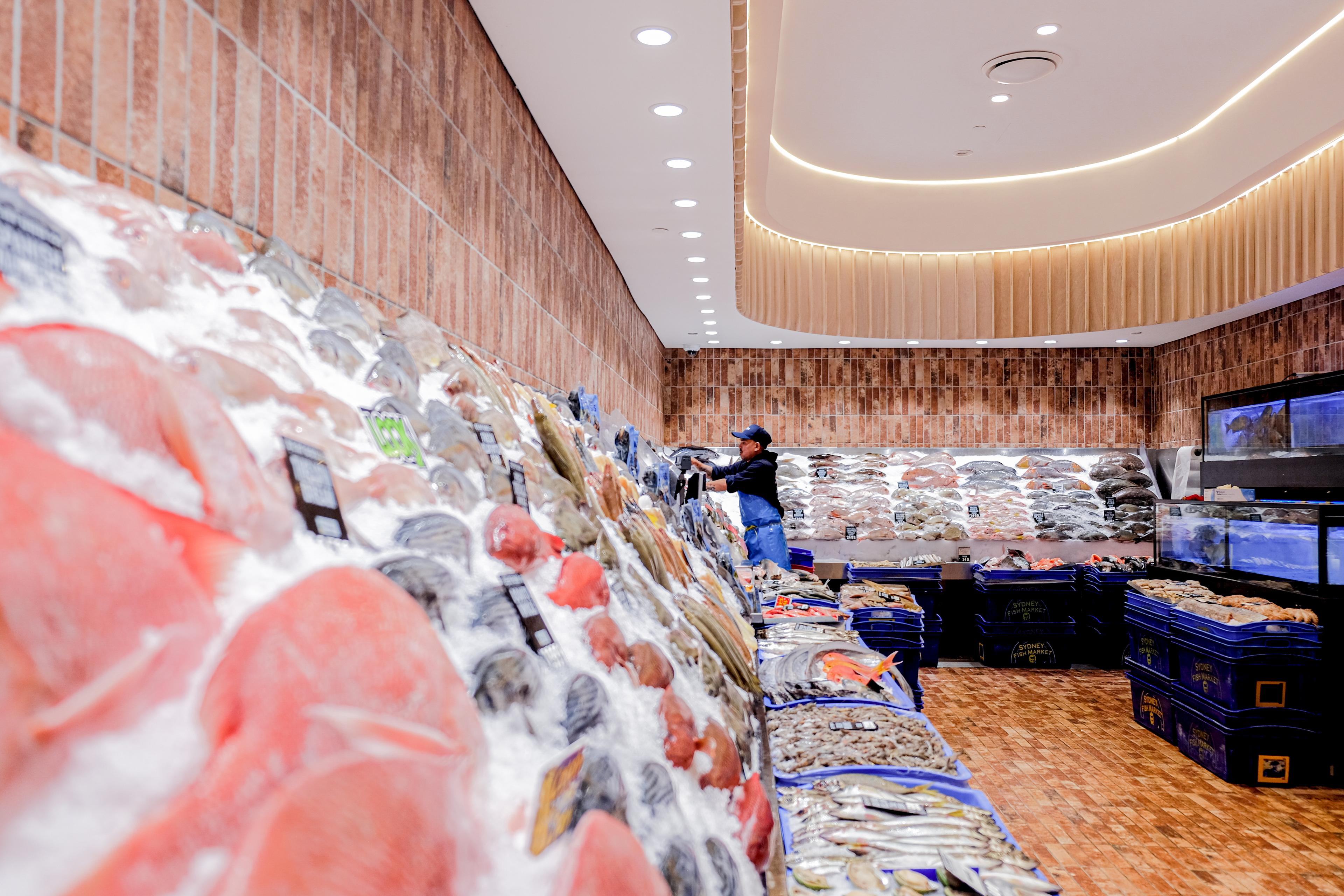

imageSeafood @ Eastgardens, Eastgardens NSW
