Miniled XMA210

Miniled XMA210

2 x 10W Recessed Adjustable Rectangular Downlight
Options

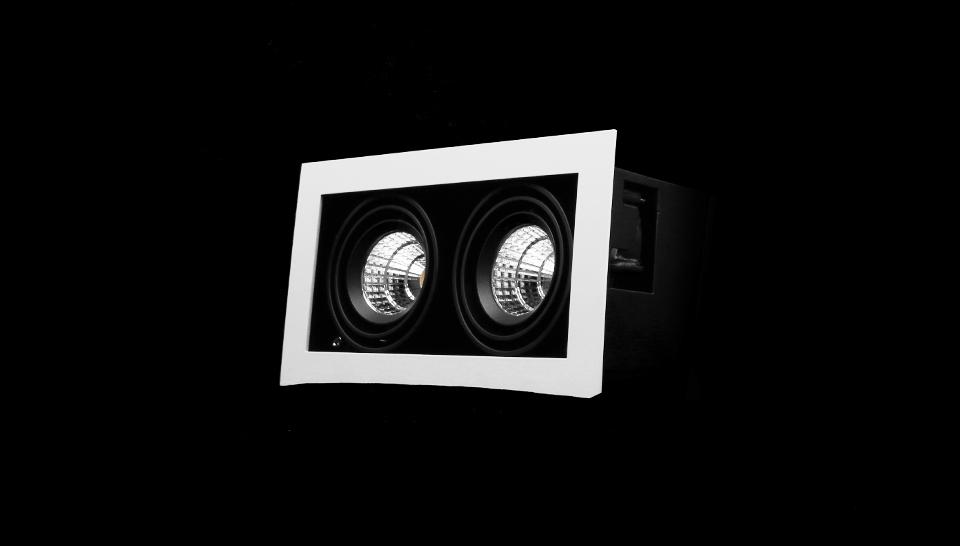

  • Twin recessed LED downlight with rectangular trim

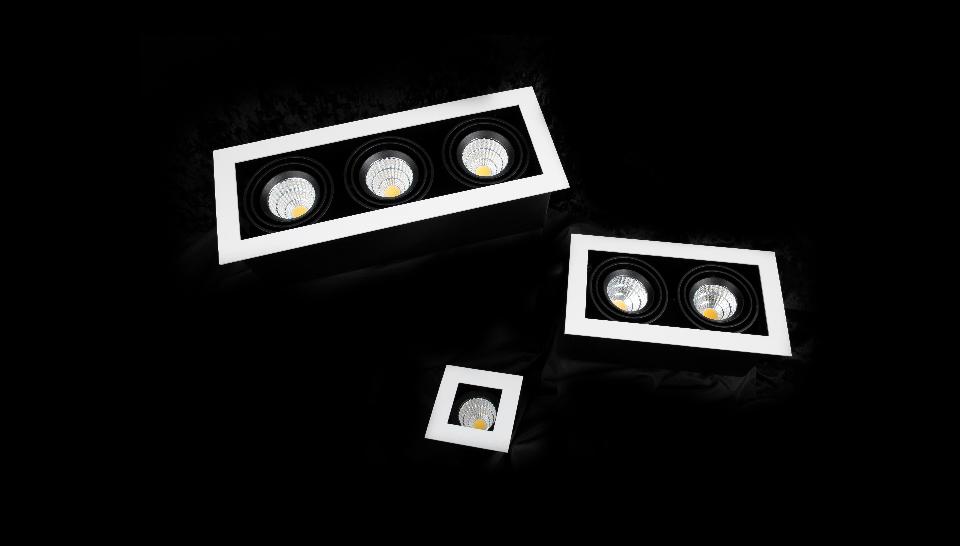

  • Also available in a single spot (XMA10) or as a row of three (XMA310)
  • Manufactured with an aluminium body and powder coat finish
  • Designed to be fully versatile, allowing for changes in the direction and inclination angle of the light up to 35° in 2 directions
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red
Miniled XMA210 3
20240209 135152
Miniled XMA210 2
1
3

Physical Characteristics

Dimensions235 (L) X 130 (W) X 110 (H) mm
Weight450 g
Tilt Angle35º x 35°
CutoutRectangle - 215 x 110 mm
Spring Height21 mm

General Characteristics

Family
Miniled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

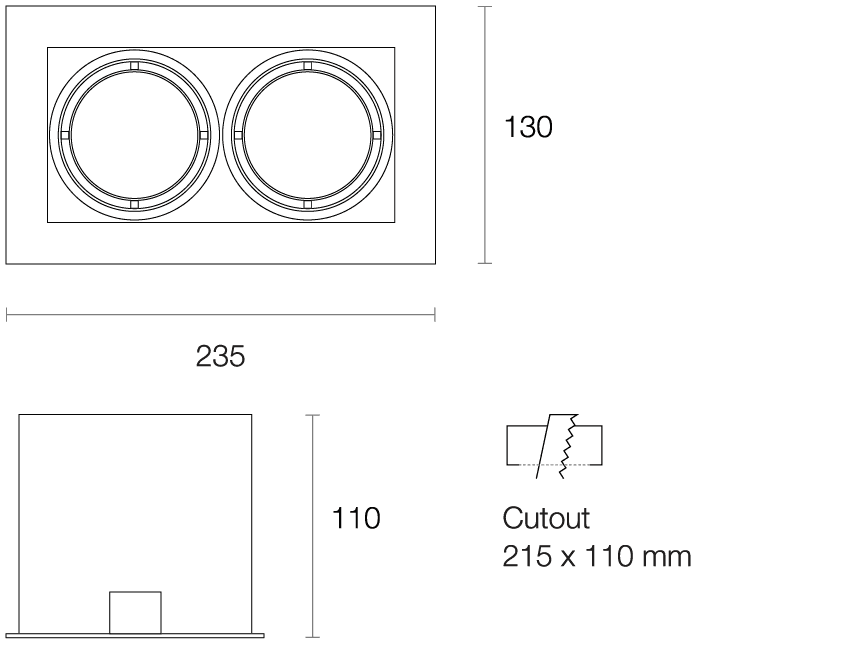

Dimensions (mm)

XMA210 2x

Technical Characteristics*

LED Power2 x 10.5W
LED TypeCOB
LED Lumen Output*2900 lm
Luminous Flux*2284 lm
Efficacy*97.61 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80)
System Power23.4W Typical
Driver ModelTrend 150218-300 (L&T) x2
* Based on: 4000K, CRI 90+ Standard
