Panel ZPL20

Panel ZPL20

20W Recessed Rectangular Panel Light
Options

  • Rectangular LED panel light known for its thin profile and high performance
  • Designed with powder coated extruded aluminium frame with low glare and high transparency microprismatic diffuser
  • Can be configured with different mounting kits - suspended, surface mounted and plaster recessed
  • Suitable for mounting in metric T-Bar ceiling applications
  • CRI 80+ available in 3000K and 4000K options
  • Supplied with a remote driver for easy installation
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI80
Icon type Beam Angle var UW
Icon IP40
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions595 (L) X 295 (W) X 12 (H) mm
Weight1250 g

General Characteristics

Family
Panel
Surface
Ceiling
Mounting
Recessed|
Surface Mounted|
Suspended
Insulation ContactNon-IC
Ingress ProtectionIP40

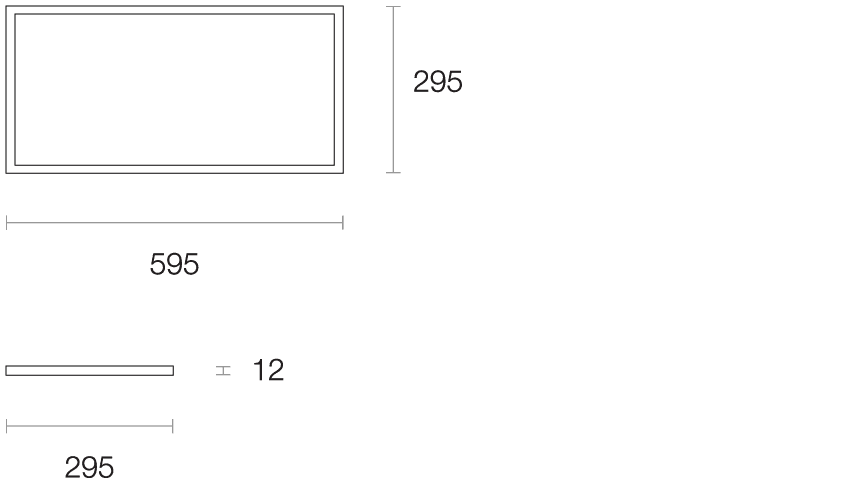

Dimensions (mm)

ZPL20 2x

Technical Characteristics*

LED Power20W
LED TypeSMD
LED Lumen Output*2850 lm
Luminous Flux*2218 lm
Efficacy*99.02 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80 B10)
System Power22.4W Typical
Driver ModelTrend 150020-700 (Non-dim)
* Based on: 4000K, CRI 80+ Standard
