Panel ZPM40

Panel ZPM40

40W Recessed Square Panel Light
Options

  • Square LED panel light known for its thin profile and high performance
  • Designed with powder coated extruded aluminium frame with low glare and high transparency microprismatic diffuser
  • Can be configured with different mounting kits - suspended, surface mounted and plaster recessed
  • Suitable for mounting in metric T-Bar ceiling applications
  • CRI 80+ available in 3000K and 4000K options
  • Supplied with a remote driver for easy installation
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI80
Icon type Beam Angle var UW
Icon IP40
Icons Technical CMYK ICCA90 Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions595 (L) X 595 (W) X 12 (H) mm
Weight2350 g

General Characteristics

Family
Panel
Surface
Ceiling
Mounting
Recessed|
Surface Mounted|
Suspended
Insulation ContactCA90
Ingress ProtectionIP40

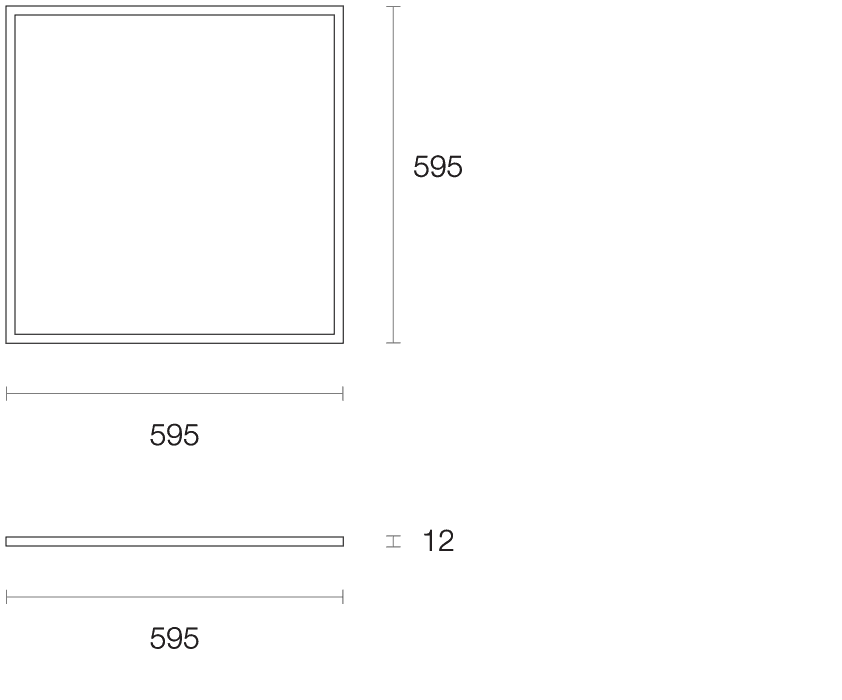

Dimensions (mm)

ZPM40 2x

Technical Characteristics*

LED Power40W
LED TypeSMD
LED Lumen Output*5600 lm
Luminous Flux*4435 lm
Efficacy*108.70 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80 B10)
System Power40.8W Typical
Driver ModelTrend 150027-1000 (Non-dim)
* Based on: 4000K, CRI 80+ Standard
