Platinum P12Q

Platinum P12Q

12W Recessed Premium Downlight
Options

  • Recessed low glare premium LED downlight with removable black baffle insert ideal for accent lighting and highlighting points of interest
  • Manufactured with an aluminium body and powder coat finish
  • Injection moulded twice vacuum metalised reflector for high reflectivity and uniform beam distribution
  • Can be specified with specular dark reflector
  • CRI 94+ and CRI 98+ Optisolis available in 2700K, 3000K, 3500K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI94
Icon type Beam Angle var NB
Icon IP20
Icons Technical CMYK ICCA90 Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀85 X 116 (H) mm
Weight280 g
CutoutCircle - 76 mm
Spring Height16 mm

General Characteristics

Family
Platinum
Surface
Ceiling
Mounting
Recessed
Insulation ContactCA90
Ingress ProtectionIP20

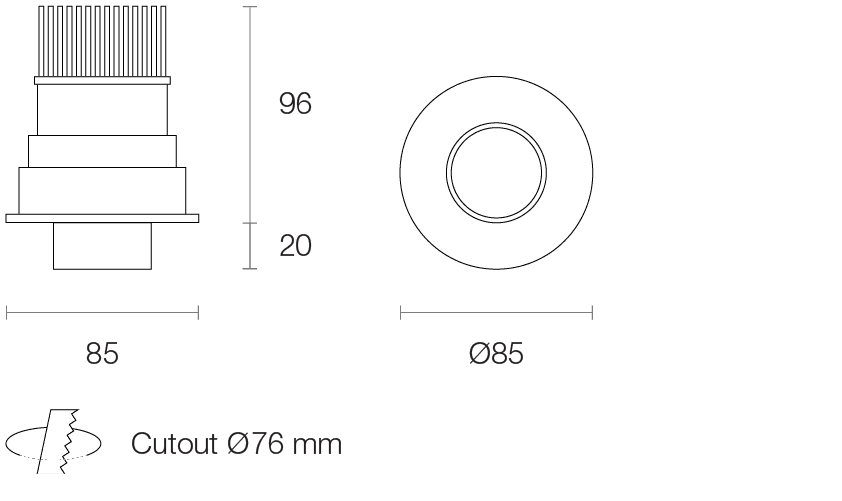

Dimensions (mm)

P12Q 2x

Technical Characteristics*

LED Power10W
LED TypeCOB
LED Lumen Output*1350 lm
Luminous Flux*587 lm
Efficacy*49.33 lm/W
Colour DeviationSDCM ≤ 2
Lifetime>60,000 hours (L80 B10)
System Power11.9W Typical
Driver ModelTrend 150218-300 (L&T) Black
* Based on: 4000K, CRI 94+ Standard
