Platinum PT18J

Platinum PT18J

18W Tunable Recessed Premium Downlight
Options

  • Recessed premium LED downlight with tunable white technology
  • Designed with a curved appearance to seamlessly integrate into ceilings
  • Manufactured with an aluminium body and powder coat finish
  • Injection moulded twice vacuum metalised reflector for high reflectivity and uniform beam distribution
  • Can be specified with specular dark reflector
  • CRI 90+ available in 2700-5000K CCT range
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icons Technical CMYK CCT Tech TUNABLE Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP54
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

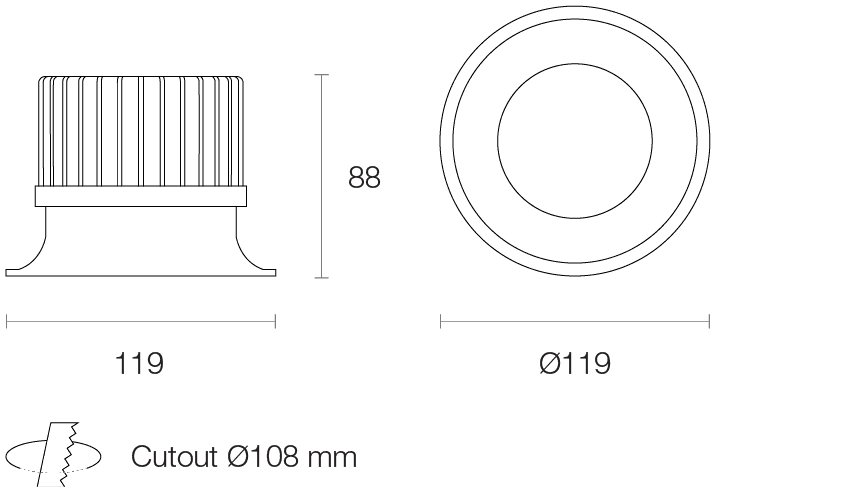

Dimensions⌀119 X 88 (H) mm
Weight490 g
CutoutCircle - 108 mm
Spring Height65 mm

General Characteristics

Family
Platinum
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP54

Dimensions (mm)

PT18 J 2x

Technical Characteristics*

LED Power20W
LED TypeCOB
LED Lumen Output*2443 lm
Luminous Flux*2766 lm
Efficacy*106.76 lm/W
CCT TechnologyTunable
Colour DeviationSDCM ≤ 2
Lifetime>60,000 hours (L80 B10)
System Power26W Typical
Driver ModelTrend 150253-500 (DALI)
* Based on: 2700K-5000K, CRI 90+ Standard
