Retroled XLN18

Retroled XLN18

18W Deep Recessed Downlight
Options

  • Recessed downlight with thin trim profile, deep reflector design and wide shielding angle for optimum visual comfort
  • Manufactured from die-cast aluminium trim and aluminium heatsink, enabling excellent thermal management
  • Also available in other configurations (XLN25 and XLN35)
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP44
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀150 X 97 (H) mm
Weight380 g
CutoutCircle - 120 - 130 mm
Spring Height38 mm

General Characteristics

Family
Retroled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP44

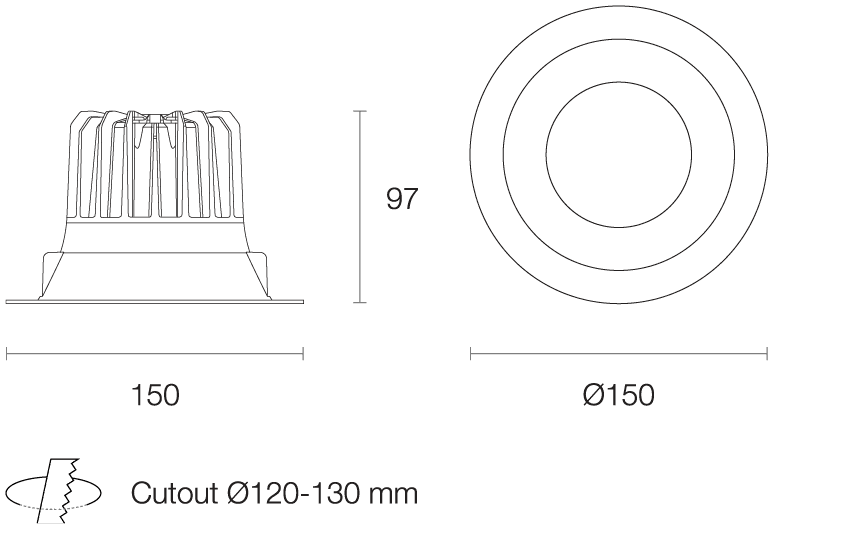

Dimensions (mm)

XLN18 2x

Technical Characteristics*

LED Power16W
LED TypeCOB
LED Lumen Output*1945 lm
Luminous Flux*1869 lm
Efficacy*103.83 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours
System Power18W Typical
Driver ModelTrend DR-XLN18 (L&T)
* Based on: 4000K, CRI 90+ Standard
