Retroled XLN35

Retroled XLN35

35W Deep Recessed Downlight
Options

  • Recessed downlight with thin trim profile, deep reflector design and wide shielding angle for optimum visual comfort
  • Manufactured from die-cast aluminium trim and aluminium heatsink, enabling excellent thermal management
  • Also available in other configurations (XLN18 and XLN25)
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP44
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀240 X 142 (H) mm
Weight812 g
CutoutCircle - 195 - 230 mm
Spring Height40 mm

General Characteristics

Family
Retroled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP44

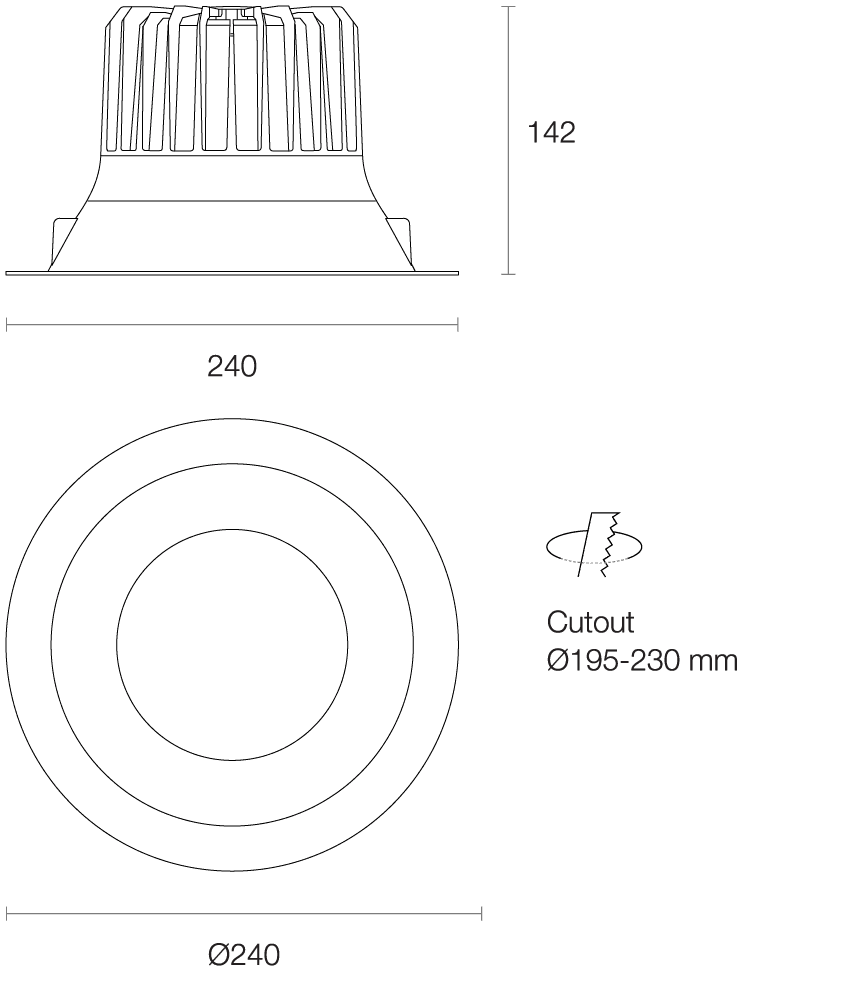

Dimensions (mm)

XLN35 2x

Technical Characteristics*

LED Power32W
LED TypeCOB
LED Lumen Output*4149 lm
Luminous Flux*3531 lm
Efficacy*100.89 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours
System Power35W Typical
Driver ModelTrend DR-XLN35 (L&T)
* Based on: 4000K, CRI 90+ Standard
