Skylyte PL0601

Skylyte PL0601

30W 600mm Tri-colour Square Panel
Options

  • Square SMD LED panel
  • Manufactured from powder coated aluminium frame with low glare and high output micro-prismatic diffuser
  • Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
  • Supplied with a remote driver for easy maintenance
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icons Technical RGB CCT Tech TRI Colour
Icon type CRI var CRI85
Icon type Beam Angle var UW
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Warranty3 YR Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions595 (L) X 595 (W) X 12 (H) mm
Weight2350 g

General Characteristics

Family
Trend For Trade,
Skylyte
Surface
Ceiling
Mounting
Recessed|
Surface Mounted|
Suspended
Insulation ContactNon-IC
Ingress ProtectionIP20
Warranty3 Years

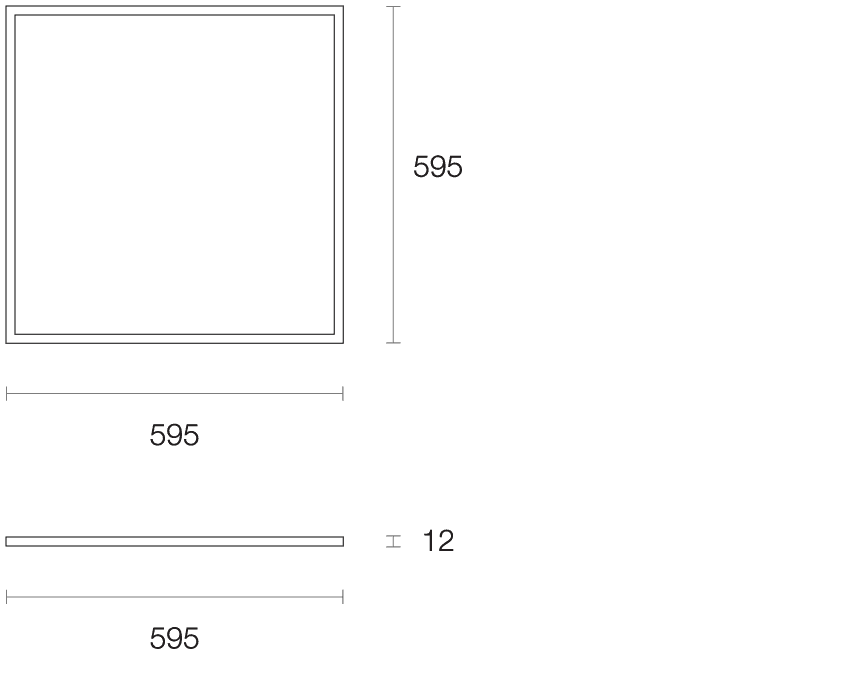

Dimensions (mm)

PL0601 2x

Technical Characteristics

LED Power30W
LED TypeSMD
LED Lumen Output*3,850 lm
Efficacy*Up to 87 lm/W
CCT TechnologyTri-colour Selectable
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours
System Power33W Typical
Driver ModelTrend DR-PL0601 (Non-dim)
