Spike VSL6

Spike VSL6

6W IP65 Rated Exterior Spike Light
Options

  • Surface mounted IP65 rated adjustable spike light, offering a flexible solution for landscape and architectural lighting
  • Manufactured from 316 stainless steel with a powder coat finish
  • CRI 80+ available in 3000K CCT option
  • Compatible driver models available upon request
  • Requires 12V DC 500mA constant voltage driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI80
Icon type Beam Angle var MB
Icon IP65
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀55 X 160 (H) mm
Weight688 g
Tilt Angle90°

General Characteristics

Family
Spike
Surface
Floor|
Wall
Mounting
Surface Mounted
Ingress ProtectionIP65

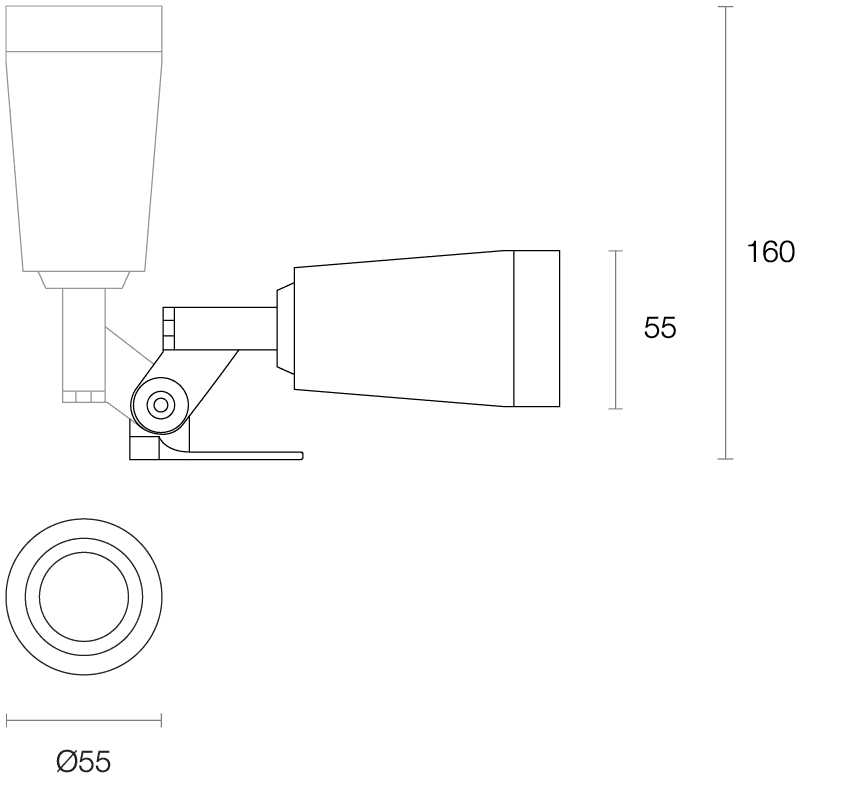

Dimensions (mm)

VSL6 2x

Technical Characteristics*

LED Power6W
LED TypeCOB
LED Lumen Output*540 lm
Luminous Flux*467 lm
Efficacy*77.83 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80)
System Power6W Typical
* Based on: 3000K, CRI 80+ Standard
