Surface XSR35

Surface XSR35

35W Surface Mounted Downlight
Options

  • Surface mounted LED downlight, manufactured with an aluminium body in powder coat finish and sealed face with silicone gasket
  • Designed with no visible mounting screws providing a cleaner look with a large integral pin fin heatsink for excellent thermal management
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with an integral driver
Product Standards
Icon type Trim var Black
Icons Technical RGB Insert Black Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀140 X 205 (H) mm
Weight1835 g

General Characteristics

Family
Surface
Surface
Ceiling
Mounting
Surface Mounted
Ingress ProtectionIP20

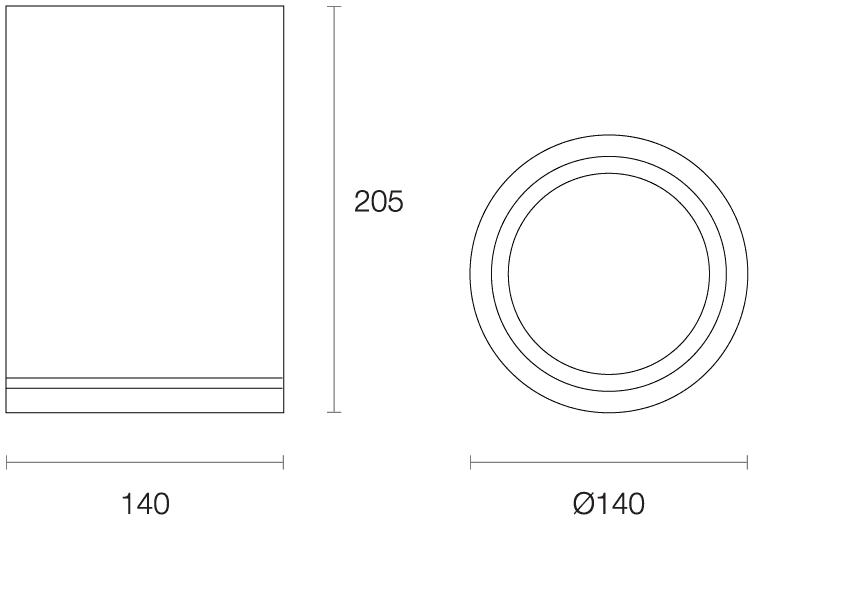

Dimensions (mm)

XSR35 2x

Technical Characteristics*

LED Power35W
LED TypeCOB
LED Lumen Output*4746 lm
Luminous Flux*3625 lm
Efficacy*96.67 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power37.5W Typical
Driver ModelTrend 150081-800 (T/E)
* Based on: 4000K, CRI 90+ Standard
