Surface XSR3525-IP65

Surface XSR3525-IP65

25W IP65 Rated Surface Mounted Downlight
Options

  • Surface mounted LED downlight with sealed body providing an IP65 rating
  • Sealed face with silicone gasket for added ingress protection
  • Designed with no visible mounting screws providing a cleaner look with a large integral pin fin heatsink for excellent thermal management
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with an integral driver
Product Standards
Icon type Trim var Black
Icons Technical RGB Insert Black Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP65
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀140 X 235 (H) mm
Weight1835 g

General Characteristics

Family
Surface
Surface
Ceiling
Mounting
Surface Mounted
Ingress ProtectionIP65

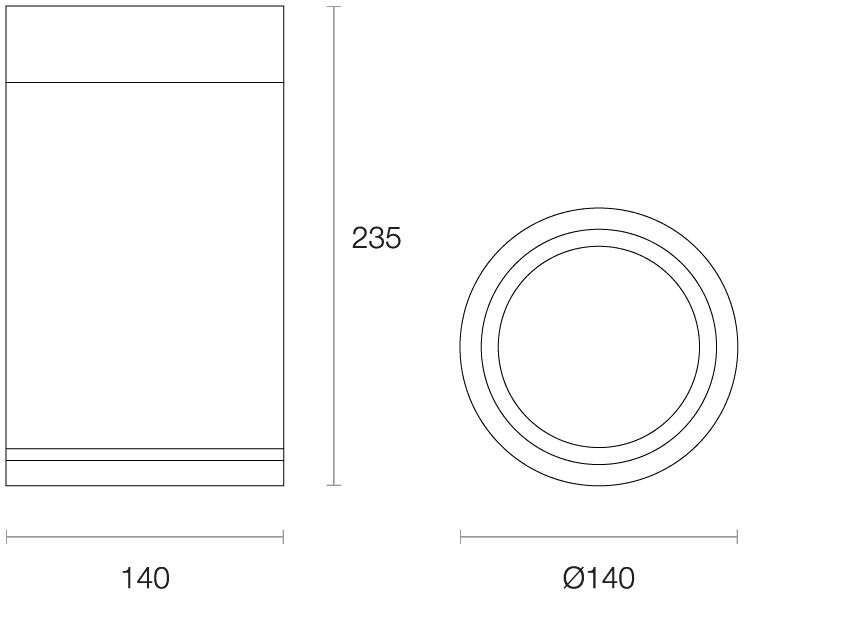

Dimensions (mm)

XSR3525 IP65 2x

Technical Characteristics*

LED Power25W
LED TypeCOB
LED Lumen Output*2955 lm
Luminous Flux*2230 lm
Efficacy*83.21 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power26.8W Typical
Driver ModelTrend 150080-600 (T/E)
* Based on: 4000K, CRI 90+ Standard
