Track Linear XTLX1200

Track Linear XTLX1200

30W Track Mounted Adjustable Linear
Options

  • Track mounted adjustable linear light with slim profile known for its adjustable design and versatility
  • Adjustable brackets provide 355° tilt for flexible illumination options
  • Manufactured from extruded aluminium with powder coat finish and opal acrylic diffuser for smooth beam distribution
  • Customisable lengths and other lumen package options are available upon request
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options
  • Supplied with an integral driver and 3 circuit track adapter
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI90
Icon type Beam Angle var VW
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions1148 (L) X 40 (W) X 120 (H) mm
Weight1240 g
Tilt Angle355°

General Characteristics

Family
Track Linear
Surface
Ceiling
Mounting
Track Mounted
Ingress ProtectionIP20

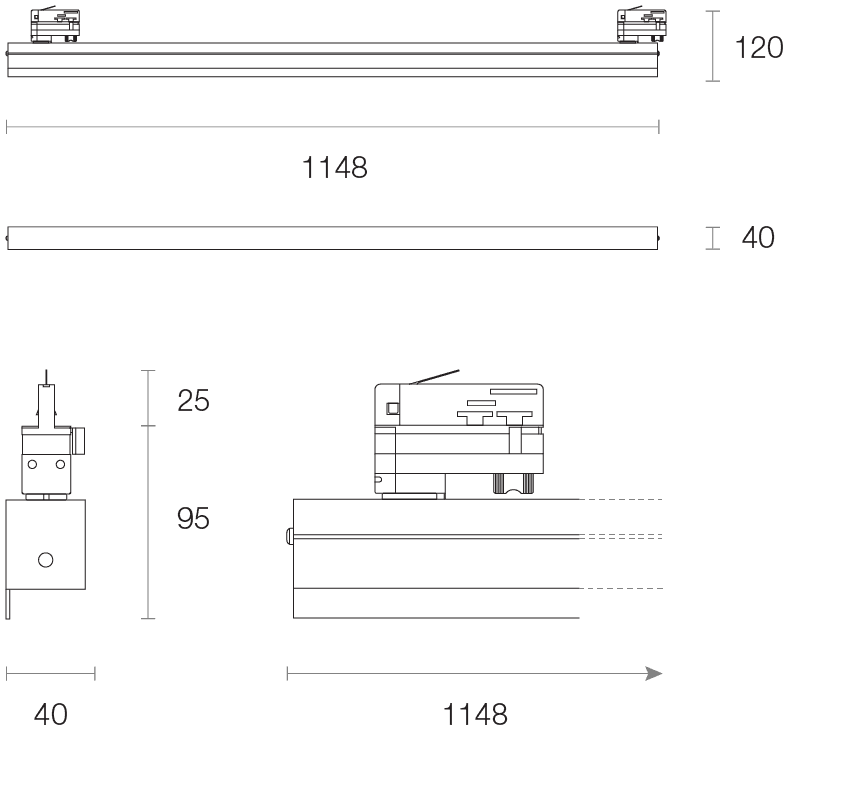

Dimensions (mm)

XTLX1200 2x

Technical Characteristics*

LED Power30W
LED TypeSMD
LED Lumen Output*4464
Luminous Flux*2610 lm
Efficacy*76.76 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80 B10)
System Power34W Typical
Driver ModelTrend 150058 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
