Track Linear XTLX600

Track Linear XTLX600

15W Track Mounted Adjustable Linear
Options

  • Track mounted adjustable linear light with slim profile known for its adjustable design and versatility
  • Adjustable brackets provide 355° tilt for flexible illumination options
  • Manufactured from extruded aluminium with powder coat finish and opal acrylic diffuser for smooth beam distribution
  • Customisable lengths and other lumen package options are available upon request
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options
  • Supplied with an integral driver and 3 circuit track adapter
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI90
Icon type Beam Angle var VW
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions590 (L) X 40 (W) X 120 (H) mm
Weight620 g
Tilt Angle355°

General Characteristics

Family
Track Linear
Surface
Ceiling
Mounting
Track Mounted
Ingress ProtectionIP20

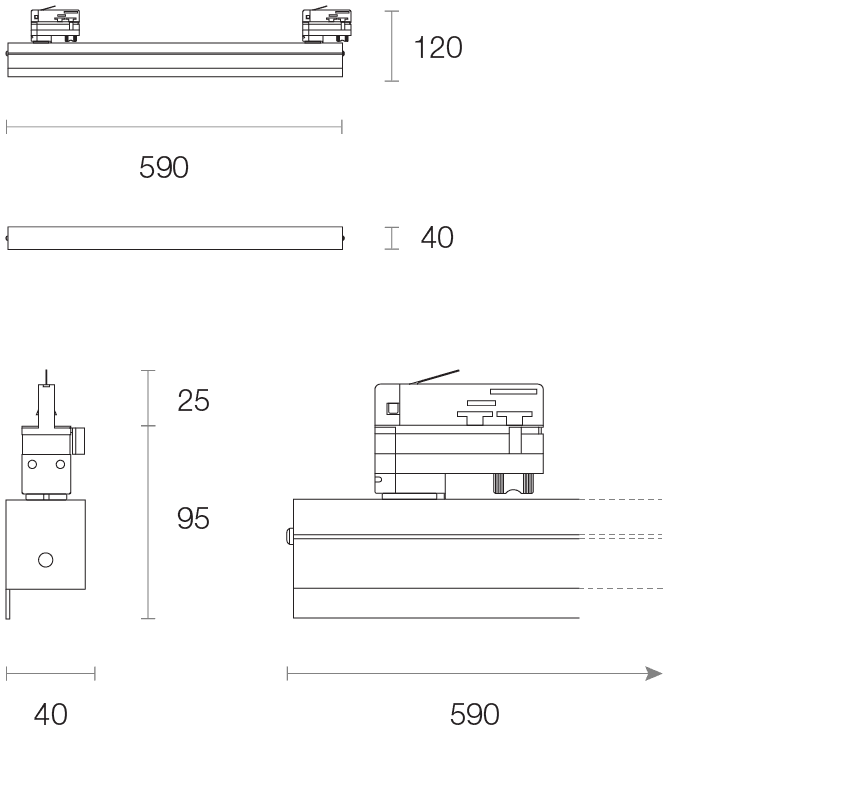

Dimensions (mm)

XTLX600 2x

Technical Characteristics*

LED Power15W
LED TypeSMD
LED Lumen Output*2232 lm
Luminous Flux*1305 lm
Efficacy*76.76 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80 B10)
System Power17W Typical
Driver ModelTrend 150058 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
