Track Linear ZTM35

Track Linear ZTM35

33W Track Mounted Adjustable Linear
Options

  • Track mounted adjustable linear light known for its beam configuration and angular adjustment
  • Designed with a high efficiency reflector providing smooth light distribution
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with universal 3 circuit track adapter for quick and easy installation on a variety of track systems
  • Supplied with integral driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions285 (L) X 60 (W) X 138 (H) mm
Weight862 g
Tilt Angle60°
Rotation350°

General Characteristics

Family
Track Linear
Surface
Ceiling
Mounting
Track Mounted
Ingress ProtectionIP20

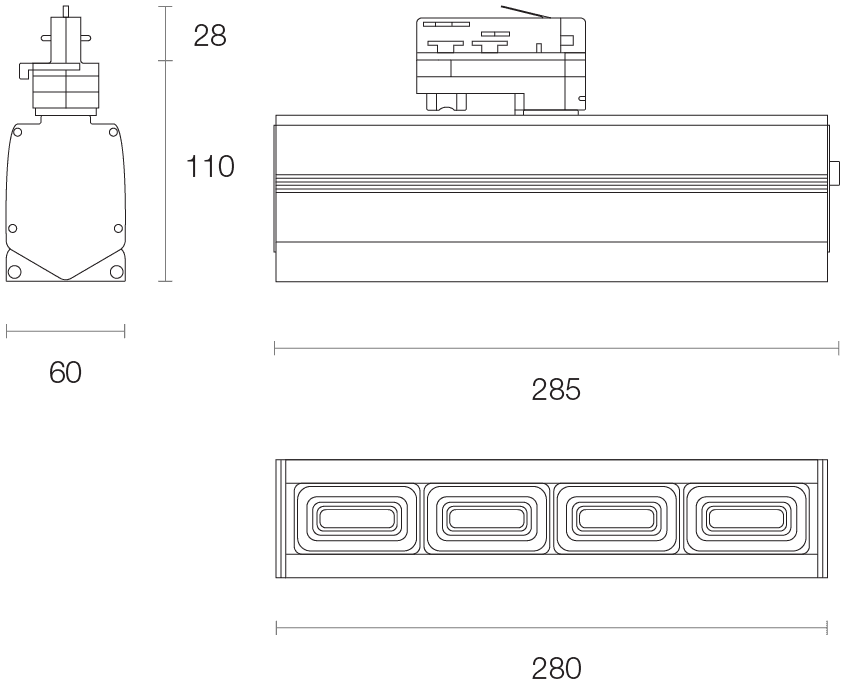

Dimensions (mm)

ZTM35 2x

Technical Characteristics*

LED Power33W
LED TypeSMD
LED Lumen Output*4680 lm
Luminous Flux*3510 lm
Efficacy*97.50 lm/W
Colour DeviationSDCM ≤3
Lifetime50,000 hours (L80)
System Power36W Typical
Driver ModelTrend 150026-1000 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
