Track Linear ZTX60

Track Linear ZTX60

60W Continuous Linear Track
Options

  • Track mounted linear system with high efficacy and light performance
  • High efficiency acrylic lens design provides smooth light distribution in symmetrical or asymmetrical beam options
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with universal 3 circuit track adapter for quick and easy installation on a variety of track systems
  • Supplied with integral driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI90
Icon type Beam Angle var VW
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions1153 (L) X 80 (W) X 85 (H) mm
Weight2218 g

General Characteristics

Family
Track Linear
Surface
Ceiling
Mounting
Track Mounted
Ingress ProtectionIP20

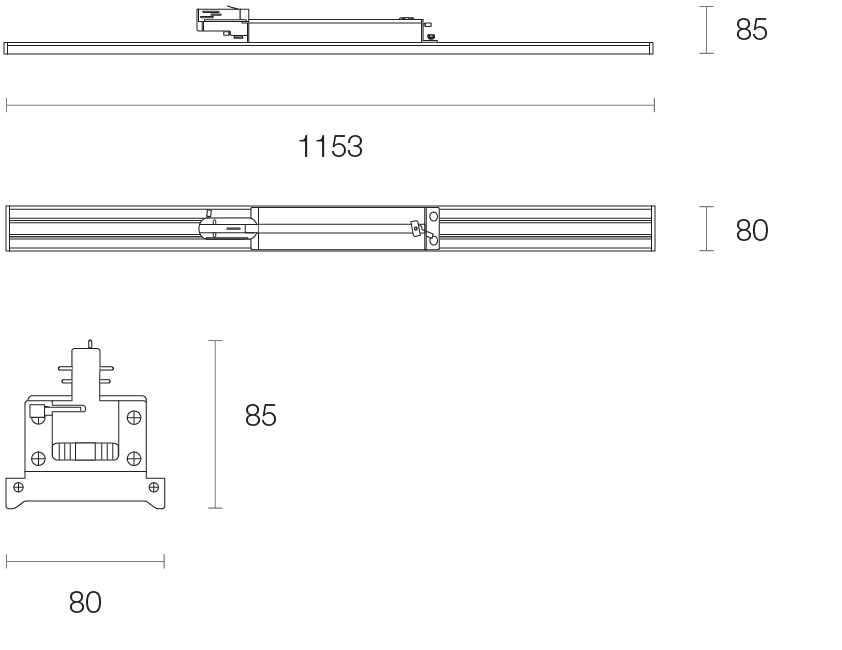

Dimensions (mm)

ZTX60 2x

Technical Characteristics*

LED Power60W
LED TypeSMD
LED Lumen Output*8100 lm
Luminous Flux*6600 lm
Efficacy*106.45 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80)
System Power62W Typical
Driver ModelTrend DR-ZTX60 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
