Track Spot XTB35

Track Spot XTB35

35W Architectural Premium Track Spot
Options

  • Track mounted premium LED spotlight designed to make an architectural statement and a practical solution for track installations
  • Built from an aluminium powder coated body, featuring a high efficiency collimating lens for smooth and even light distribution
  • Also available in other variations (XTB10 and XTB25)
  • CRI 90+ available in 2700K, 3000K, 3500K, 4000K and 5000K CCT options; CRI 97+ and CRI 93+ VIVID available in 2700K, 3000K, and 4000K CCT options
  • Supplied with a 3-circuit track adapter and an integral driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀115 X 216 (H) mm
Weight1861 g
Tilt Angle90°
Rotation350°

General Characteristics

Family
Track Spot
Surface
Ceiling
Mounting
Track Mounted
Ingress ProtectionIP20

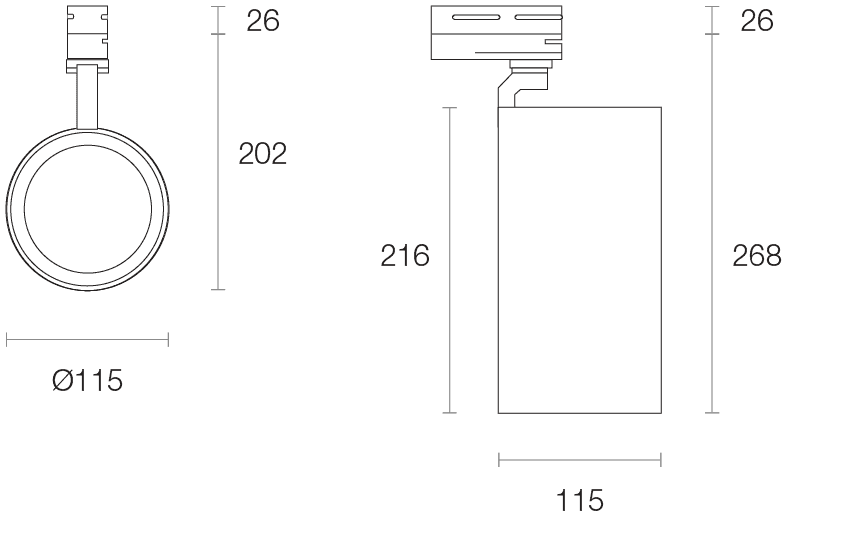

Dimensions (mm)

XTB35 2x

Technical Characteristics*

LED Power35W
LED TypeCOB
LED Lumen Output*3322 lm
Luminous Flux*2694 lm
Efficacy*71.84 lm/W
Colour DeviationSDCM ≤2
Lifetime50,000 hours (L80)
System Power37.5W Typical
Driver ModelTrend 150081-800 (T/E)
* Based on: 4000K, CRI 90+ Standard
