Track Spot XTF25

Track Spot XTF25

25W Zoomable Track Mounted Spotlight
Options

  • Track mounted LED spotlight with zoomable lens, allowing for a 20° to 70° adjustment in beam angle for easy and accurate control with a smooth beam distribution
  • Fully adjustable design with 350° horizontal rotation and 90° vertical tilt, allowing for directional adjustment in a variety of lighting applications
  • CRI 90+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with a 3-circuit track adapter and an integral driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var ADJ
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀75 X 176 (H) mm
Weight1060 g
Tilt Angle90°
Rotation350°

General Characteristics

Family
Track Spot
Surface
Ceiling
Mounting
Track Mounted
Ingress ProtectionIP20

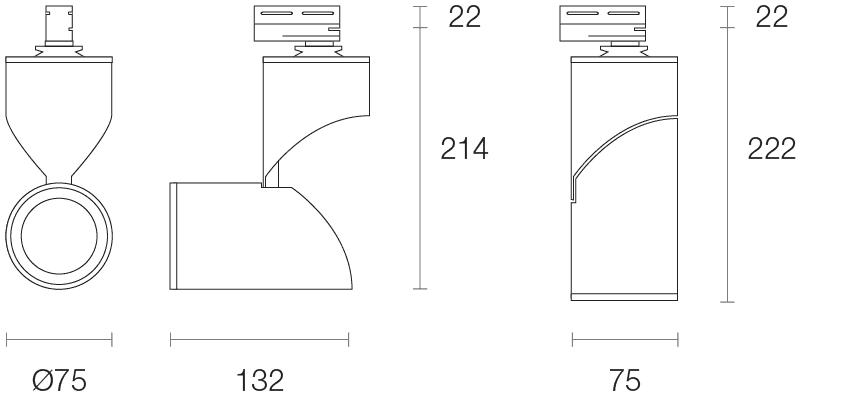

Dimensions (mm)

XTF25 2x

Technical Characteristics*

LED Power25W
LED TypeCOB
LED Lumen Output*3077 lm
Luminous Flux*2060 lm
Efficacy*87.66 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power23.5W Typical
Driver ModelTrend 150087-600 (Non-dim)
* Based on: 4000K, CRI 90+ Standard

Track Spot Series

Continue your search and explore the series range.

View Track Spot seriesArrow Right

Get in touch

Contact usArrow Right

Trend Lighting are a valued supplier of Sheridan, consistently delivering a premium full-service experience from concept design to installation with products of the highest quality. What we appreciate most about working with their team is that nothing is ever too much trouble. They continually go above and beyond to provide the best lighting solutions for our stores.

Joel Newham - Head of VM and Store Development Hanes Australasia - Sheridan Group

From the service, products, and reliability we have been nothing but happy since using Trend. The team have consistently gone above and beyond ensuring we turn around orders in tight deadlines, always making it happen.

Alexandra Klapos - Retail Project Coordinator - Billini

We are extremely happy with the work done by Trend Lighting. The lights chosen are stylish and blend well with our office whilst providing an excellent environment for our team to view fabrics and sample products.

Institchu

The lighting design provided by Trend completely transformed the space and was continuously complimented by our clients from the first day we had them up. We look forward to working with Trend for our future projects.

Ben Bottalico - Blue Group Projects

Trend Lighting collaborates with designers, architects and engineers.

We create breakthrough solutions that help reduce your costs and your carbon footprint.

OptionsConfiguration Options
Downloads

Download these files for Track Spot XTF25

Product Standard DatasheetDownload
Installation GuideDownload
Photography
All files
