Track Spot XTI25

Track Spot XTI25

25W Track Mounted Spotlight
Options

  • Track mounted LED spotlight featuring square face and collimating lens
  • Fully adjustable design with 350° rotation and 90° tilt angle, allowing for directional adjustment in a variety of lighting applications
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 97+ and CRI 93+ VIVID available in 2700K, 3000K, and 4000K CCT options
  • Supplied with a 3-circuit track adapter and an integral driver
  • Optional honeycomb lens available
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions90 (L) X 90 (W) X 141 (H) mm
Weight1323 g
Tilt Angle90°
Rotation350°

General Characteristics

Family
Track Spot
Surface
Ceiling
Mounting
Track Mounted
Ingress ProtectionIP20

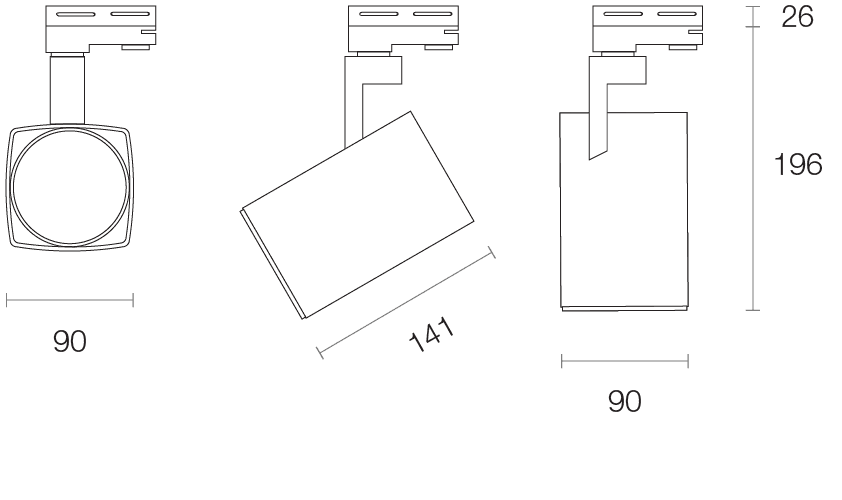

Dimensions (mm)

XTI25 2x

Technical Characteristics*

LED Power25W
LED TypeCOB
LED Lumen Output*2955 lm
Luminous Flux*2299 lm
Efficacy*87.08 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power26.4W Typical
Driver ModelTrend 150080-600 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
