Track Spot XTN10E

Track Spot XTN10E

10W Sleek Track Spot
Options

  • Track mounted sleek LED spotlight known for its high colour rendering and excellent glare control
  • Ceramic Nichia LED chip with a high efficiency collimating lens
  • Can be configured with Nichia’s award winning Optisolis™ LED
  • CRI 94+ and CRI 98+ Optisolis available in 2700K, 3000K, 3500K and 4000K CCT options
  • Supplied with a 3-circuit track adapter and integral track mounted driver
  • Optional honeycomb lens available
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI94
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀62 X 185 (H) mm
Weight685 g
Tilt Angle90°
Rotation350°

General Characteristics

Family
Track Spot
Surface
Ceiling
Mounting
Track Mounted
Ingress ProtectionIP20

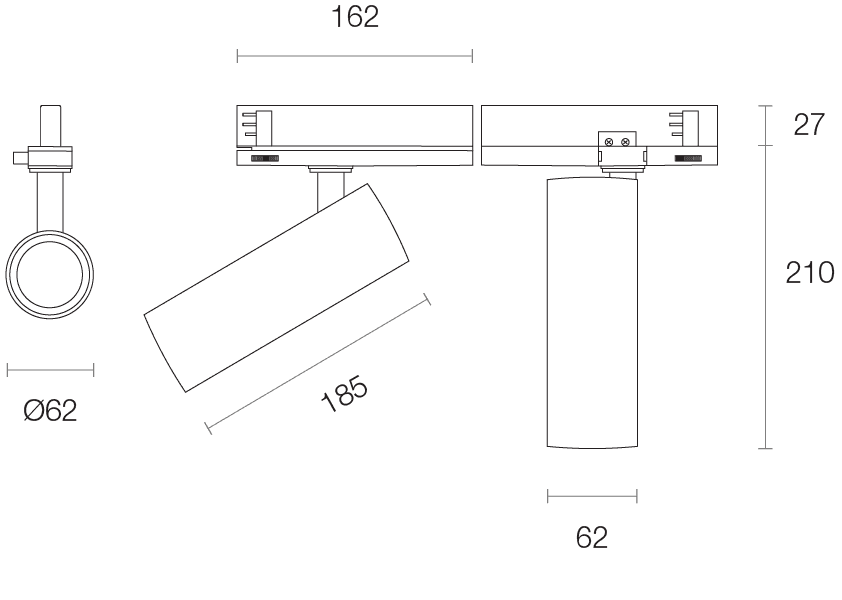

Dimensions (mm)

XTN10 E 2x

Technical Characteristics*

LED Power10W
LED TypeCOB
LED Lumen Output*1350 lm
Luminous Flux*1010 lm
Efficacy*84.87 lm/W
Colour DeviationSDCM ≤ 3
Lifetime60,000 hours (L80 B10)
System Power11.9W Typical
Driver ModelTrend 150423-250 (Non-dim)
* Based on: 4000K, CRI 94+ Standard

Track Spot Series

Continue your search and explore the series range.

View Track Spot seriesArrow Right

Trend Lighting are a valued supplier of Sheridan, consistently delivering a premium full-service experience from concept design to installation with products of the highest quality. What we appreciate most about working with their team is that nothing is ever too much trouble. They continually go above and beyond to provide the best lighting solutions for our stores.

Joel Newham - Head of VM and Store Development Hanes Australasia - Sheridan Group

From the service, products, and reliability we have been nothing but happy since using Trend. The team have consistently gone above and beyond ensuring we turn around orders in tight deadlines, always making it happen.

Alexandra Klapos - Retail Project Coordinator - Billini

We are extremely happy with the work done by Trend Lighting. The lights chosen are stylish and blend well with our office whilst providing an excellent environment for our team to view fabrics and sample products.

Institchu

The lighting design provided by Trend completely transformed the space and was continuously complimented by our clients from the first day we had them up. We look forward to working with Trend for our future projects.

Ben Bottalico - Blue Group Projects

Trend Lighting collaborates with designers, architects and engineers.

We create breakthrough solutions that help reduce your costs and your carbon footprint.

OptionsConfiguration Options
Downloads

Download these files for Track Spot XTN10E

Product Standard DatasheetDownload
Installation GuideDownload
